1 FPT RAINBIRD STR VALVE W/F

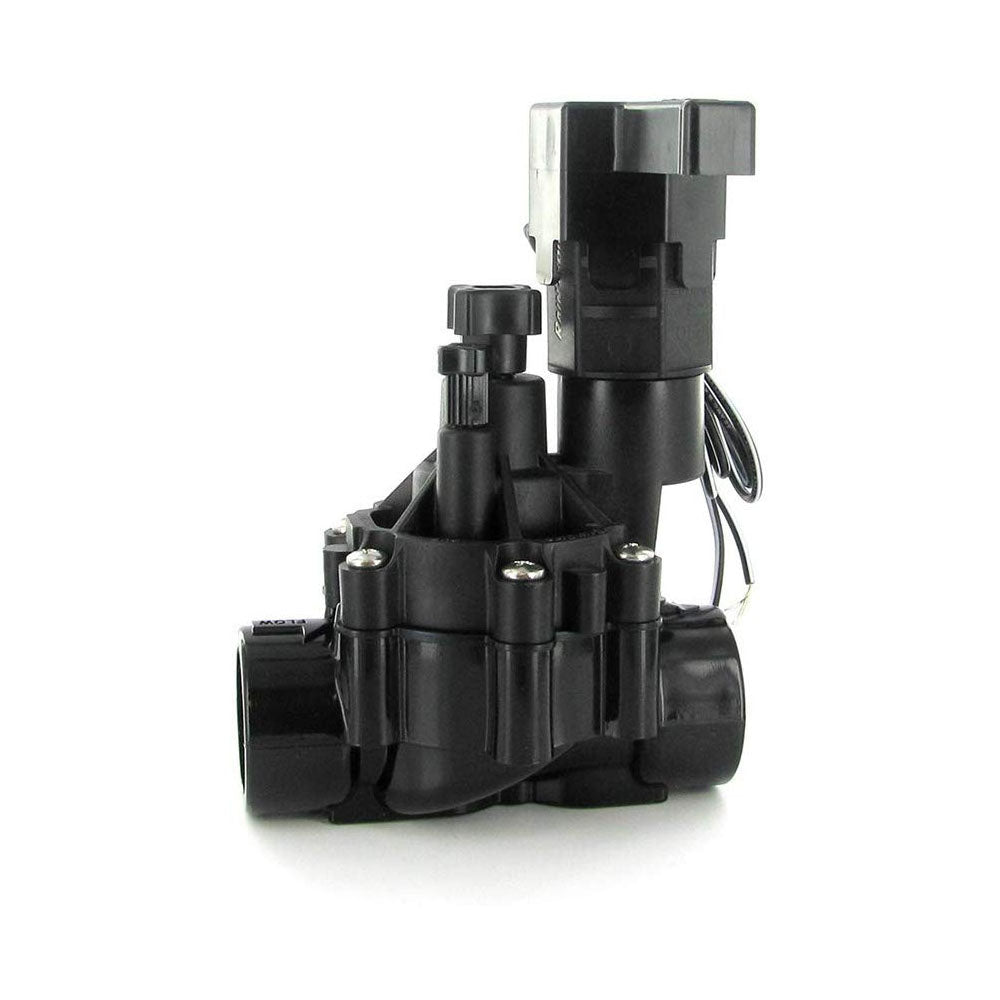

Rain Bird Straight Valve with Flow Control 1"
SKU: 100DVF

• Incorporates all features of DV Series valves, plus the following:



• Unique, easy-to-turn patented pressure assisted flow control mechanism.



• 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:



• 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current



• Solenoid coil resistance: 38 Ohms



• Pressure: 15 to 150 psi (1,0 to 10,4 bar)



• 100-DVF Flow (non-union): 0.2 to 40 gpm (0,75 m3/h; 0,21 l/s); for flows below 3 gpm or any Xerigation application, use RBY-100-200MX Filter installed upstream.



• Temperature: up to 110° F (43° C)



• Ambient air temperature: up to 125° F (52° C)
