AC DISC 60AMP Fused 240V 10HP

Product description

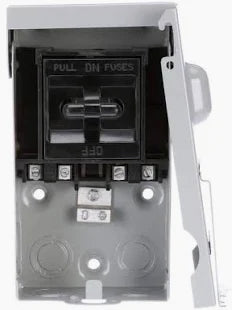

Siemens WFC2060 Fusible Pull-Out AC Disconnect
This is a weatherproof safety disconnect box installed next to an outdoor air conditioner or heat pump so power can be safely shut off for servicing.

Key specifications

• Type: Fusible (uses replaceable fuses)
• Amperage: 60A
• Voltage: 240V (single-phase)
• Poles: 2-pole
• Enclosure: NEMA 3R (outdoor rated, weather-resistant)
• Application: Air conditioners, heat pumps, outdoor HVAC equipment


What it does

• Provides a local shutoff point next to the condenser
• Allows safe HVAC servicing without going to the breaker panel
• Uses a pull-out handle that physically disconnects power
• Fusible version means it also provides overcurrent protection via fuses

WFC2060 vs WNC2060 (important difference)

• WFC2060 = Fused disconnect (has fuses inside)
• WNC2060 = Non-fused disconnect (no fuses, just a switch)
