FERNCO INC.

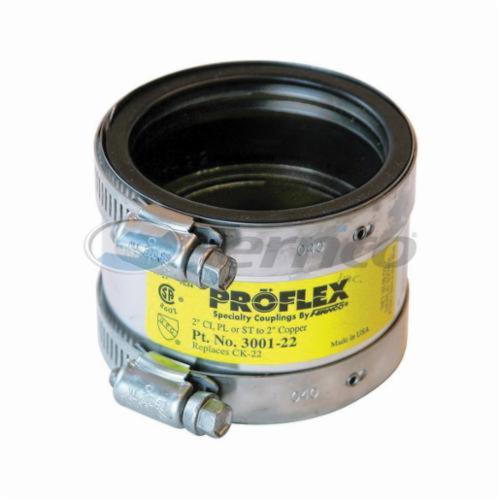

C I PL OR ST TO 2 CO (CK-22

C I PL OR ST TO 2 CO (CK-22

300122

$14.77
$14.77 $18.97
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

DIMENSIONS

LENGTH

2.13 in

WEIGHT

0.39 lb

DOCUMENTS & RESOURCES

Drawings
Product Brochure

PRODUCT OVERVIEW

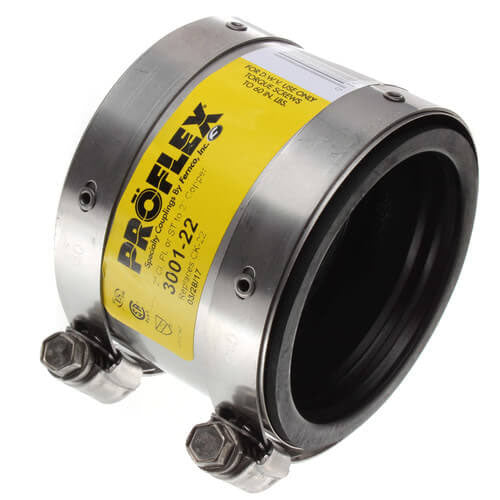

Cast Iron / Plastic or Steel to 2" Copper Coupling

Specifications:
  • Gasket Material: Neoprone
  • Shield Assembly Material Requirements: All 300 Series S.S.
  • Clamp:
    • Band = 301 St. Stl. .025 x .500 x Length
    • Housing = 301 St. Stl. Fernco
    • Screw = 305 St. Stl. 5/16" Hex no Slot
    • Shield: 301 St. Stl. .012 x 2.125 x Length
    • Eyelet: 305 St. Stl.
  • Note: Ultimate torque = 60" lbs.
  • Description: 2" CI, PL. or ST. to 2" Copper

SPECIFICATIONS

Dimensions

2.08 x 2.32 in

Domestic/Import

Domestic

End Style

Cast Iron/Plastic/Steel x Copper

Fitting/Connector Type

Coupling

Nominal Size

2 in

Series

3001

Temperature Rating

-30 to 180 deg F

Type

Shielded
