RAINBIRD GEAR DRIVEN

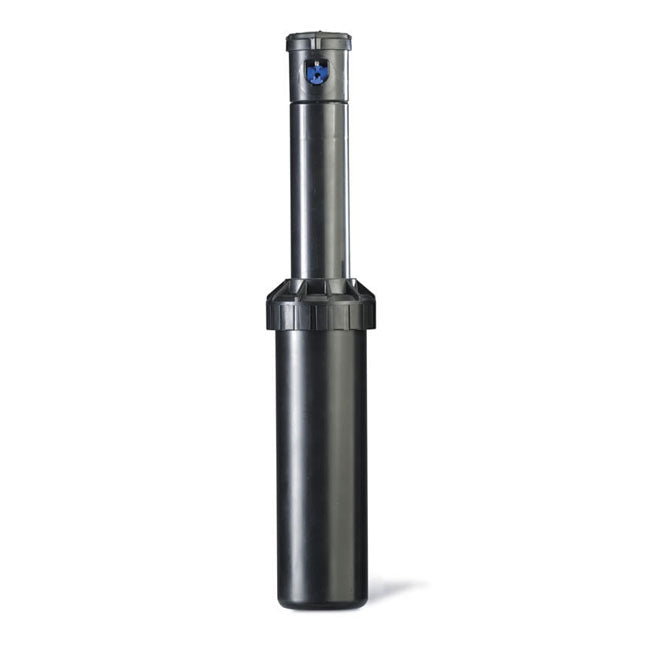

Rain Bird Partial Circle Pop-up Roto 4"
SKU: 3504PC

The 3500 Series Rotor is an easy to use short

to mid-range 1/2" gear-drive rotor, offering

value and convenience for residential

applications. Utilizing a simple flat-bladed

screwdriver, the 3500's arc adjustment is quick

and easy.

This versatile rotor offers an attachable nozzle

tree with six superior performing Rain Curtain

nozzles and the convenience of reversing full

and part circle operation (up to 360 degrees)

in one unit. Plus, a nozzle removal feature

and easily removable filter screen makes

maintenance a breeze.

• PC: Part circle



• True 4" (10 cm) pop-up (measured from center of nozzle)



• Top-adjust arc adjustment requiring only a

  flat bladed screwdriver



• Three-year trade warranty



• Water-lubricated gear-drive design for

  durable, reliable operation



• 40- 360° part circle arc rotation and

  reversing full circle rotation in one



• An attachable nozzle tree of six Rain

  Curtain nozzles.



• Radius adjustment screw allows up to 35%

  radius reduction without changing nozzles



• Quick Check Arc/Fast Forward



• Dual action, positive stop wiper seal

  protects internals from debris and assures

  positive pop-up and retraction



• Self-adjusting stator does not require

  replacement when changing nozzles



• Easily removable filter screen



• Nozzle removal feature



• Arc setting factory preset at 180° for

  installation convenience
