BROAN

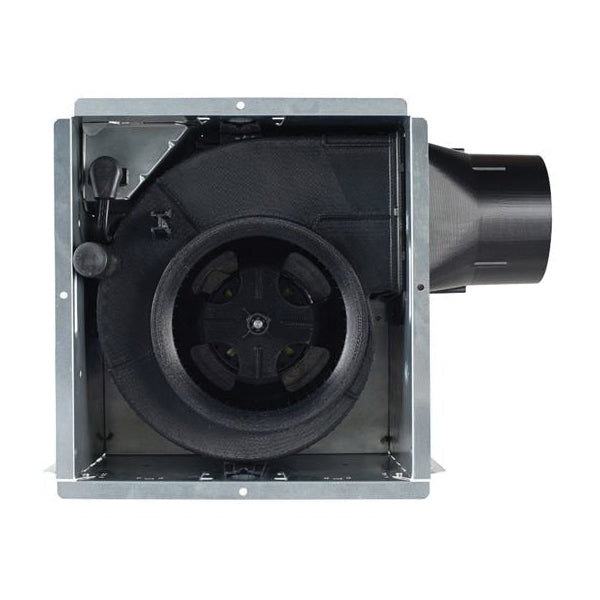

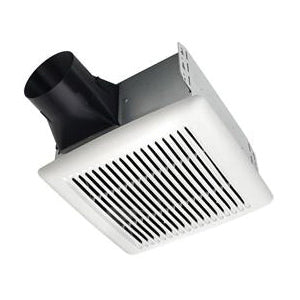

Invent Single Speed Bathroom Exhaust Fan - 80 CFM

Invent Single Speed Bathroom Exhaust Fan - 80 CFM

AE80B

$65.95
$65.95 $121.34
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Plug-in, permanently lubricated motor engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Low rpm for quiet operation
• Rugged construction
• Polymeric, 4 in duct connector with tapered sleeve and no metallic clatter
• 5-3/4 in height allows for 2 x 6 in ceiling installations
• Sturdy, easy, four-point mounting directly to joist
• Can be mounted in ceilings up to 7/12 pitch
• Innovative design - the result of extensive research with designers and consumers
• Fan shall have corrosion resistant galvanized steel housing with 4-point mounting capability

DIMENSIONS

WEIGHT

10 lb

WARRANTY

1 Year

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.

SPECIFICATIONS

Current/Amps

0.3 A

Domestic/Import

Domestic

Duct Diameter

4 in

Flow Rate

80 cfm

Frequency Rating

60 Hz

Grille Length

11-3/8 in

Grille Material

Polymer

Grille Width

12 in

Housing Height

5-3/4 in

Housing Length

9-1/4 in

Housing Material

Galvanized Steel

Housing Width

10 in

Humidity Sensing

No

Motion Sensing

No
