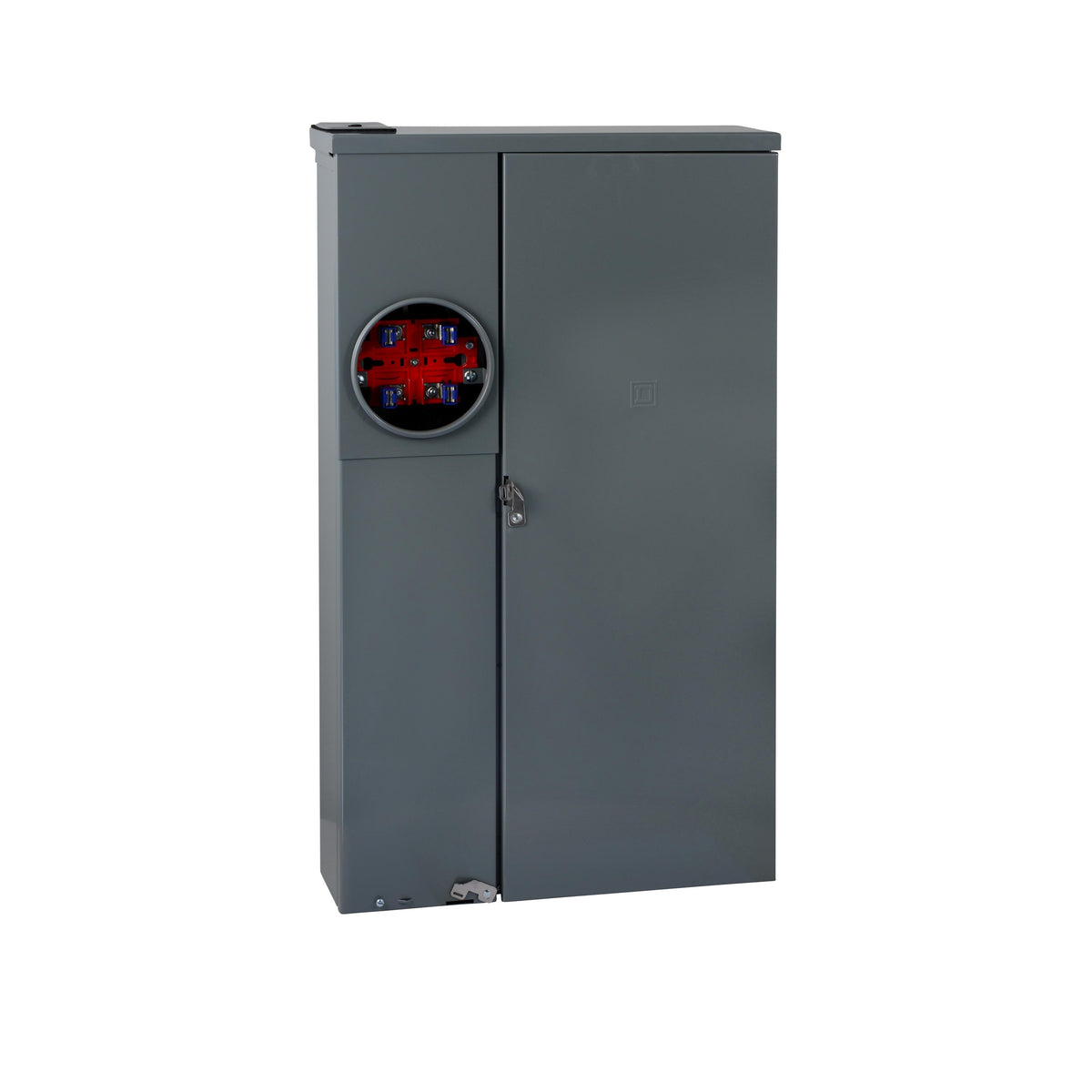

Square D™ HomeLine™ SC42M200PS 42-Circuit All-In-One Field Installed Rainproof Combination Service Entrance Meter Main, 120/240 V AC, 200 A, NEMA 3R Enclosure

The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC42M200PS, provides metered service and a main circuit breaker and 42 circuits. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20). This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. CHOM Homeline load centers are CSA certified.
