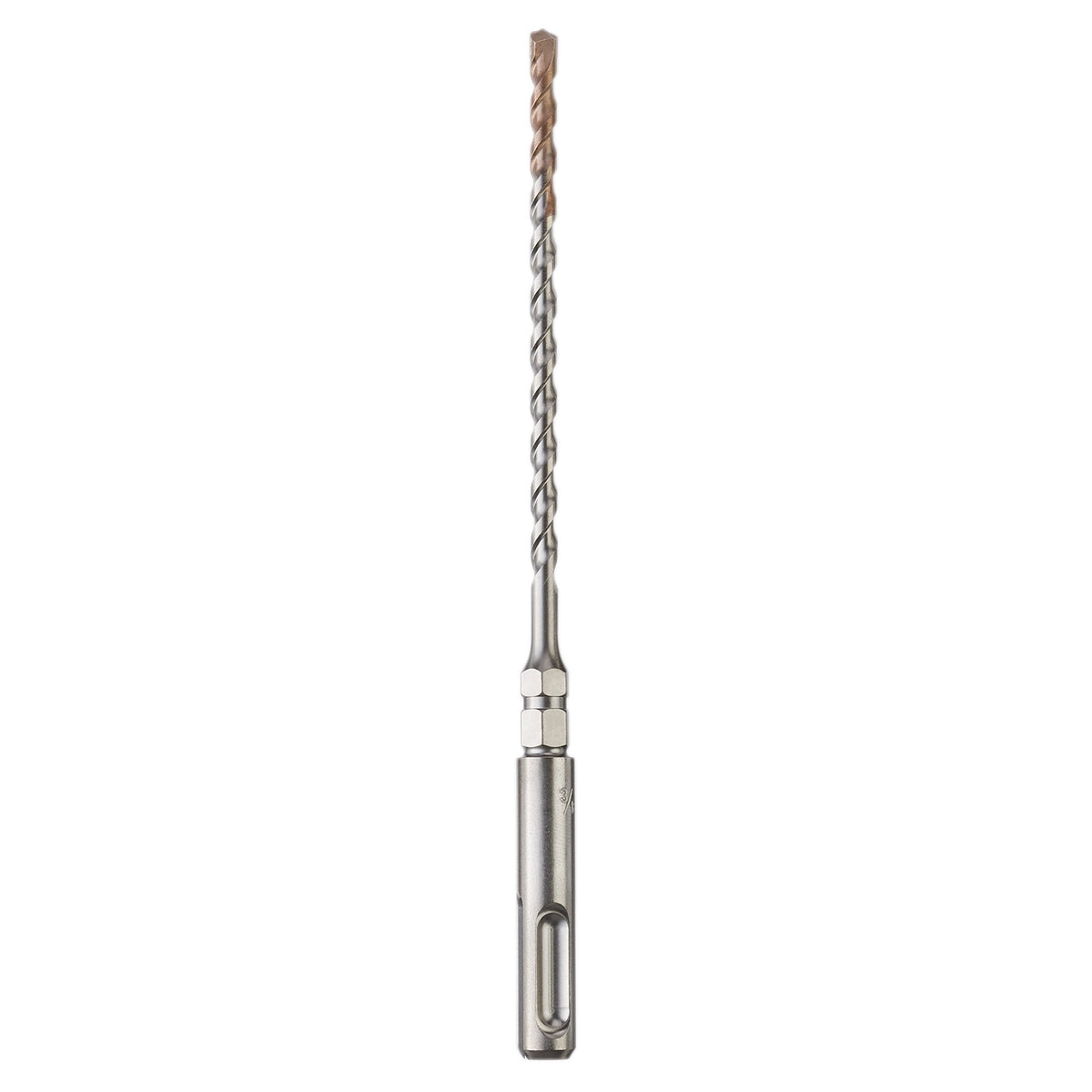

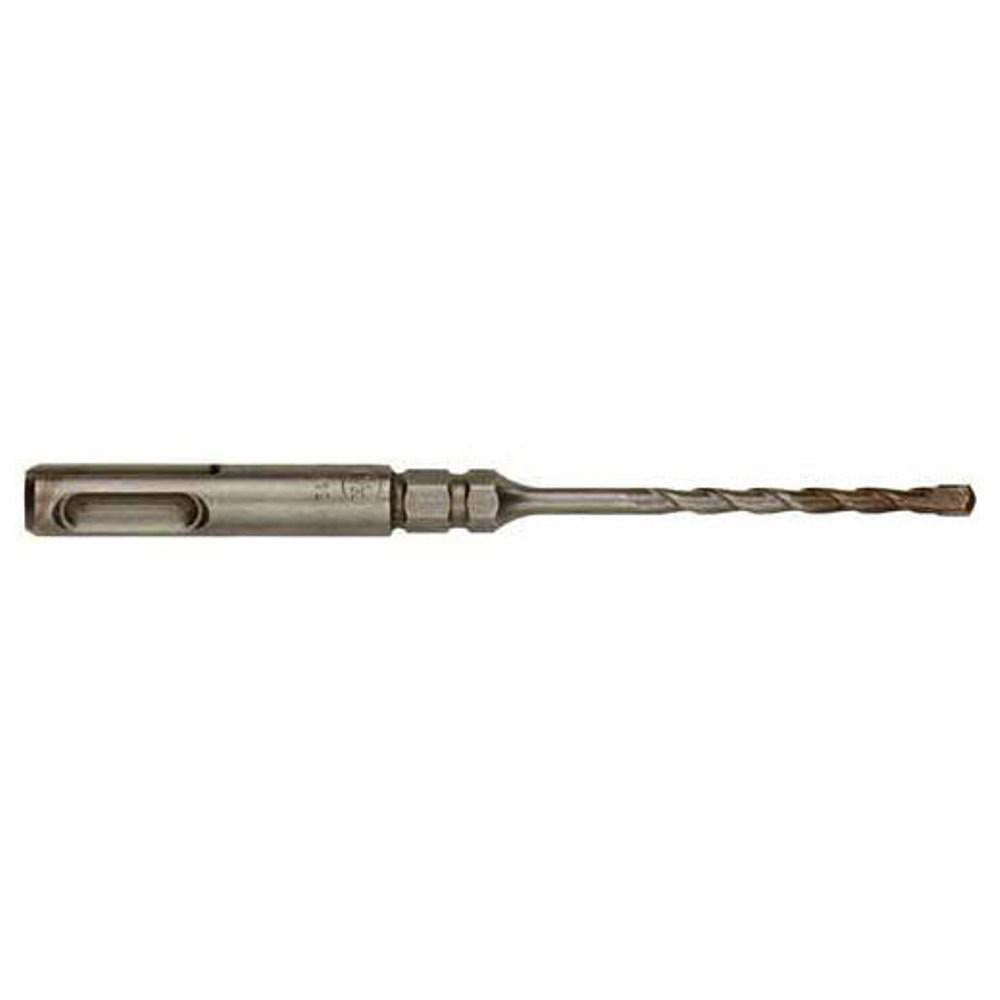

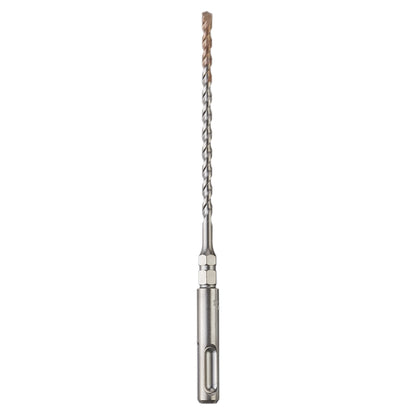

Hammer Drill Bit with Hex Shoulder - Steel
Hammer Drill Bit with Hex Shoulder - Steel
48-20-7092
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
LENGTH |
7 in |
|---|---|
|
WEIGHT |
0.13 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW

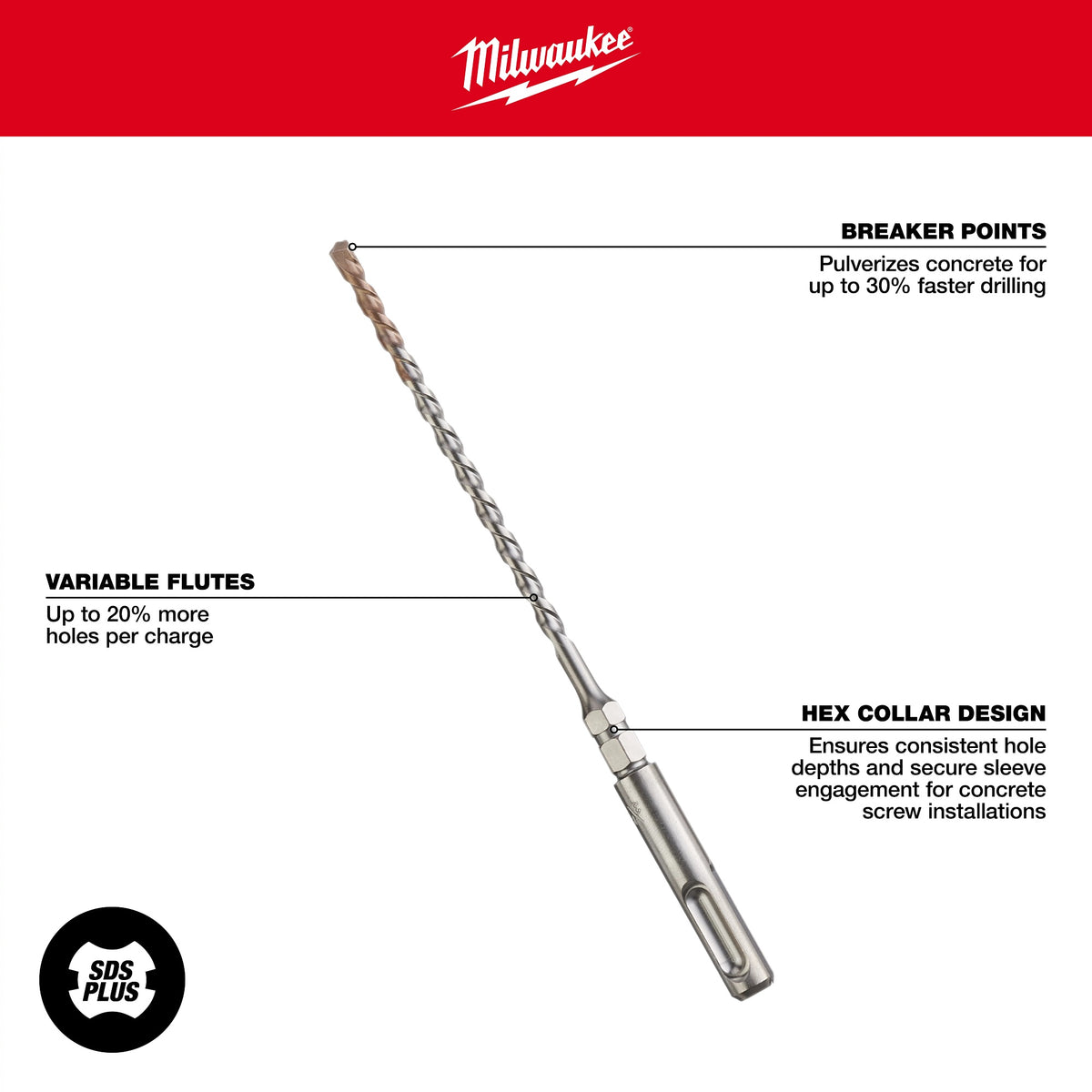

The Milwaukee® SDS Plus bits with 1/4 in. hex are designed specifically for TAPCON® screw applications. Built to take on brick, block, and concrete Milwaukee SDS Plus Bits feature 2-cutter geometry for fast drilling and debris removal. The patented, reinforced flute design increases impact resistance and transfers energy directly to the bit tip. Patented rebar chamfers withstand impact from rebar and hard aggregate, and reduce Carbide chipping. To be used with drive sleeve available in the SDS Plus TAPCON® installation kit (48-20-7497). TAPCON® is a registered trademark of Illinois tool works Inc.
SPECIFICATIONS
|
Applicable Materials |
Concrete and Masonry |
|---|---|
|
Cutting Depth |
4 in |
|
Cutting Direction |
Right Hand |
|
Cutting Edge Material |
Carbide |
|
Drill Bit Size |
3/16 in |
|
Flute Length |
4 in |
|
Material |
Steel |
|
Overall Length |
7 in |
|
Point Type |
Centering |
|
Shank Size |
1/4 in |
|
Shank Type |
SDS |
|
Type |
2-Cutter Heavy Duty |

$7.56
