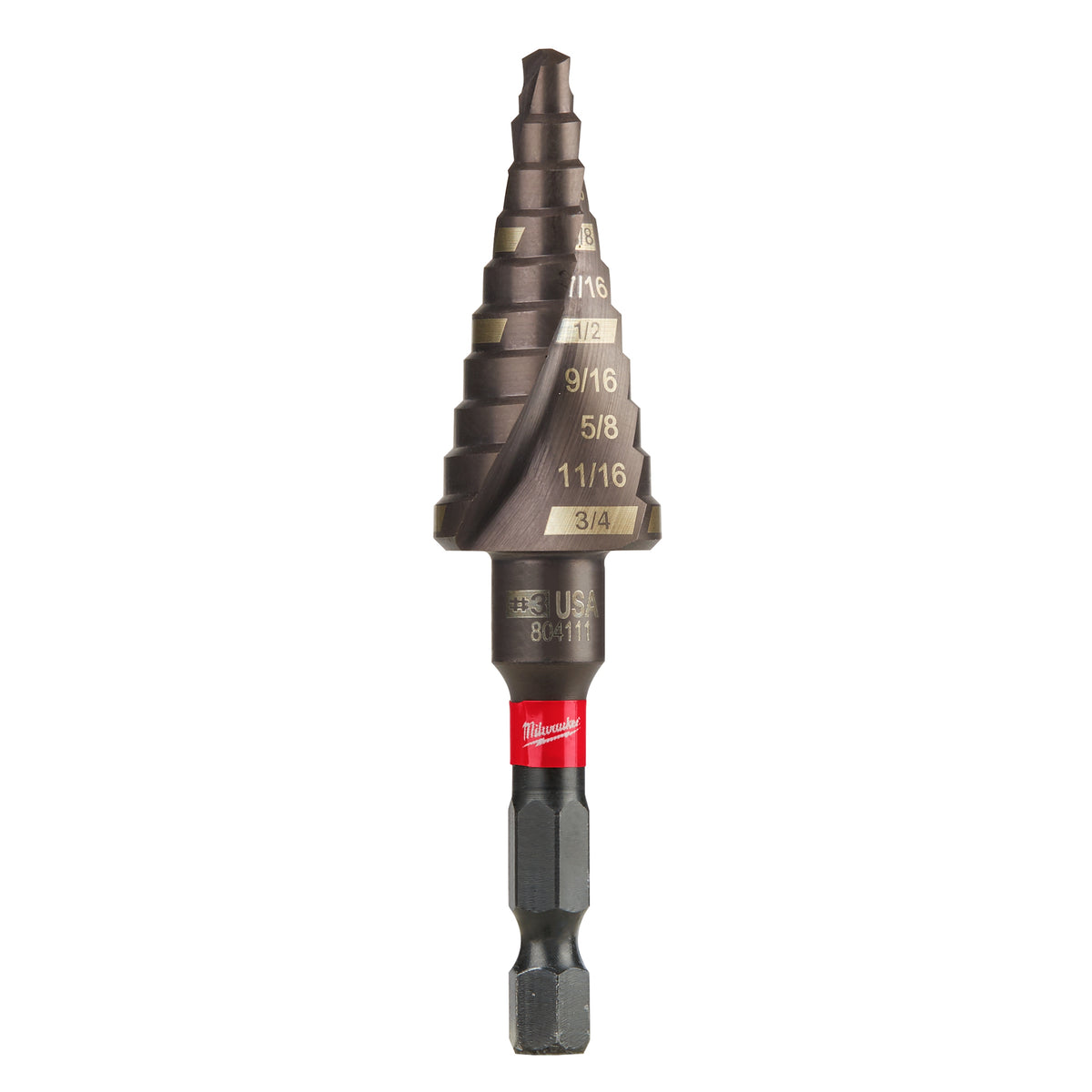

Impact Step Drill Bit - 3/16" Dia Min Hole - Titanium
Impact Step Drill Bit - 3/16" Dia Min Hole - Titanium
48-89-9243
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
LENGTH |
3.27 in |
|---|---|
|
WEIGHT |
0.14 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW

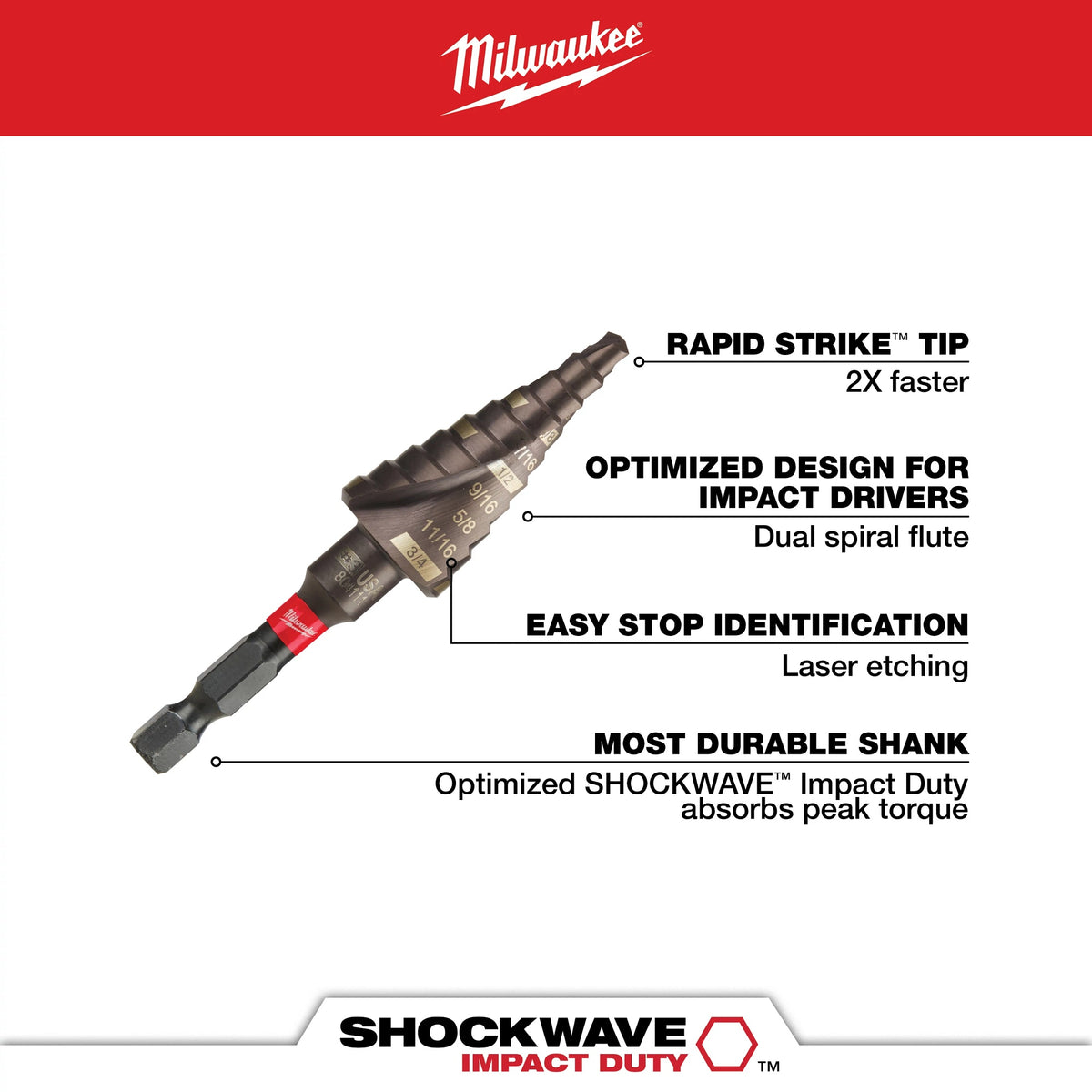

Milwaukee’s SHOCKWAVE™ Impact Duty™ step bits are engineered to deliver the most durable and fastest holes in the market. Made in the USA with global materials, these step bits have best-in-class performance in impact drivers and the versatility to be used in drills. The 1/4 in. hex shank with an optimized Shockzone™ provide the industry’s most durable shank, reducing early shank breaks. A titanium aluminum nitride (TiBone) coating helps deliver 5x longer life, while the Rapid Strike™ tip and dual spiral flute produces 2x faster holes.
SPECIFICATIONS
|
Applicable Materials |
Iron, Steel, Aluminum, Brass, Copper and Wood |
|---|---|
|
Cutting Depth |
1.628 in |
|
Flute Length |
1.628 in |
|
Flute Type |
Dual Spiral |
|
Material |
Titanium |
|
Maximum Hole Diameter |
3/4 in |
|
Minimum Hole Diameter |
3/16 in |
|
Number of Flutes |
2 |
|
Number of Hole Sizes |
10 |
|
Number of Steps |
10 |
|
Overall Length |
3-17/64 in |
|
Point Type |
Rapid Strike Tip |
|
Shank Size |
1/4 in |
|
Shank Type |
Hex |

$59.00
