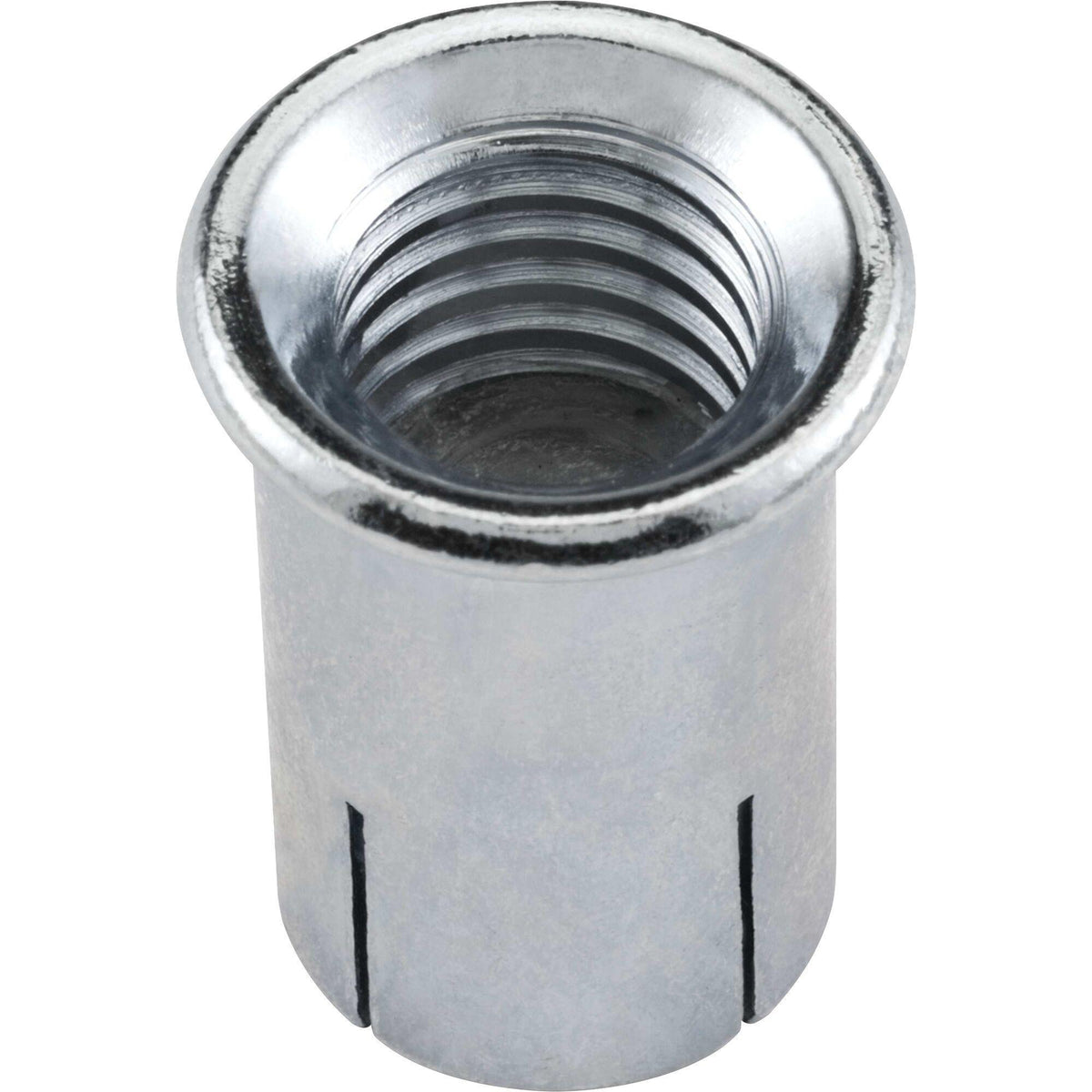

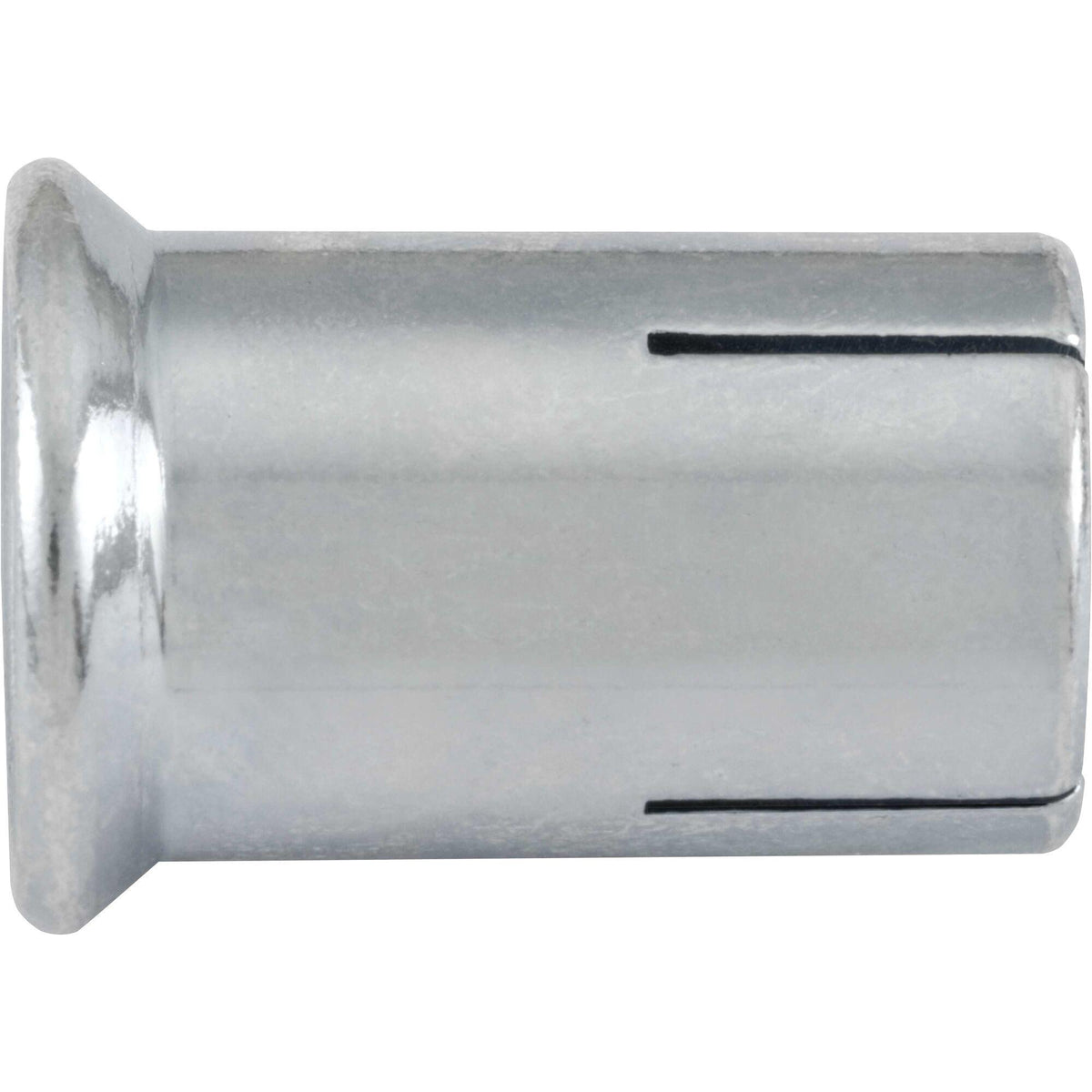

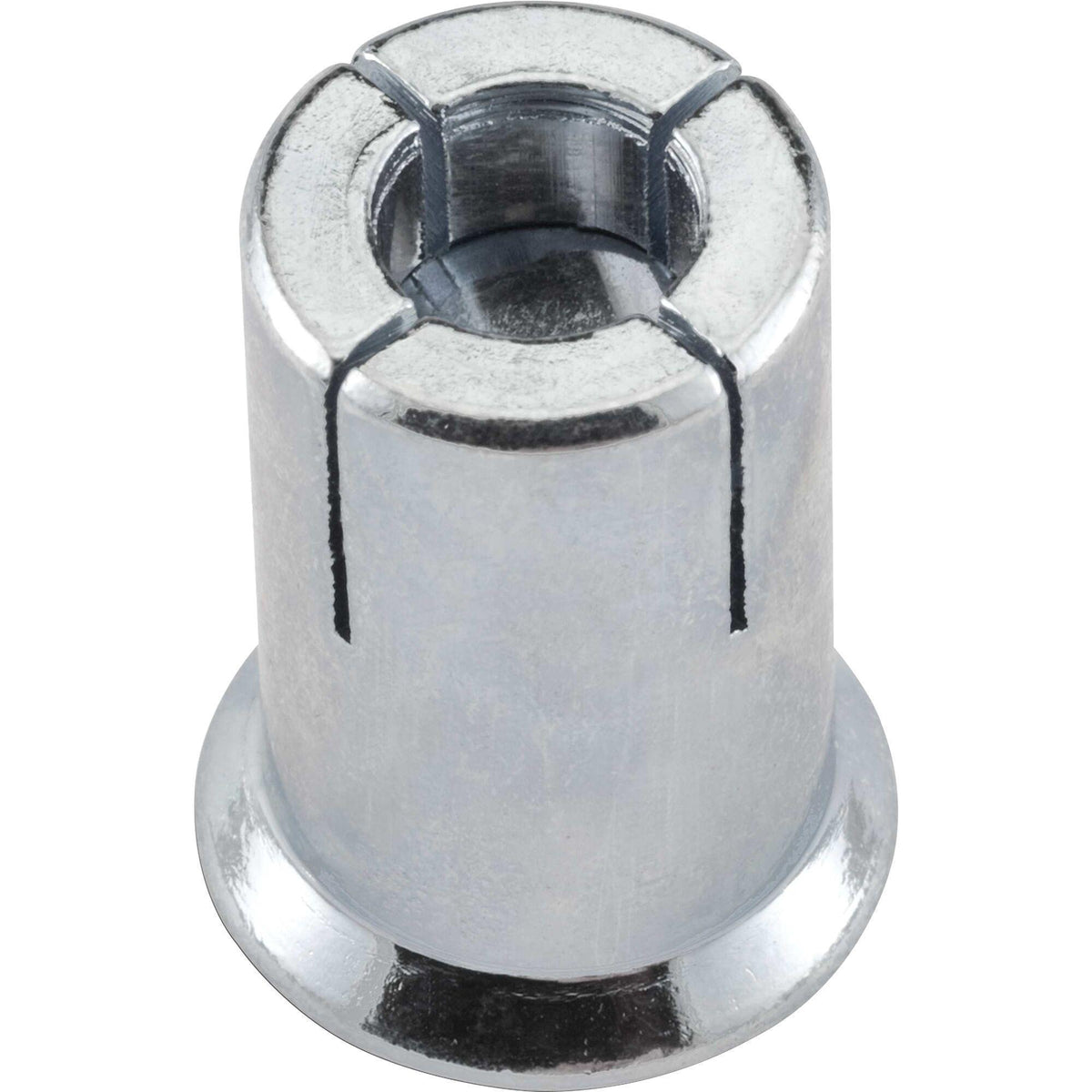

Internally Threaded Expansion Anchor - 3/8" - 1/2" Drill
Internally Threaded Expansion Anchor - 3/8" - 1/2" Drill
06322-PWR
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Internally threaded anchor for easy bolt removability and service work
• Lip provides flush installation and consistent embedment
• Ideal for precast hollow core plank and post tensioned concrete slabs
• Manual setting tool scores flange when set to verify proper expansion depth
DIMENSIONS
DIMENSIONS
|
LENGTH |
0.75 in |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The Mini Drop-in™ is a carbon steel machine bolt anchor for use in shallow embedment applications. In addition to solid concrete and precast hollow core plank, it can be used in post-tensioned concrete slabs and concrete pours over steel deck.
SPECIFICATIONS
|
Bolt/Rod Size |
3/8 in |
|---|---|
|
Drill Size |
1/2 in |
|
Material |
Carbon Steel |
|
Minimum Embedment Depth |
3/4 in |
|
Overall Length |
3/4 in |
|
Thread Size |
3/8-16 |
|
Thread Type |
UNC |
|
Type |
Internally Threaded |

$0.48
