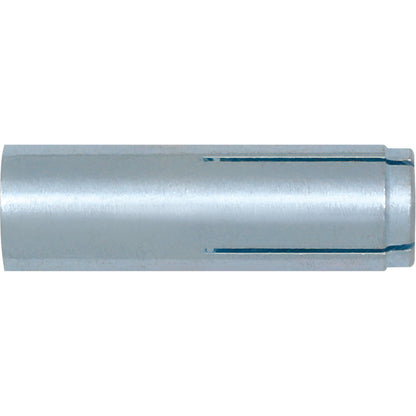

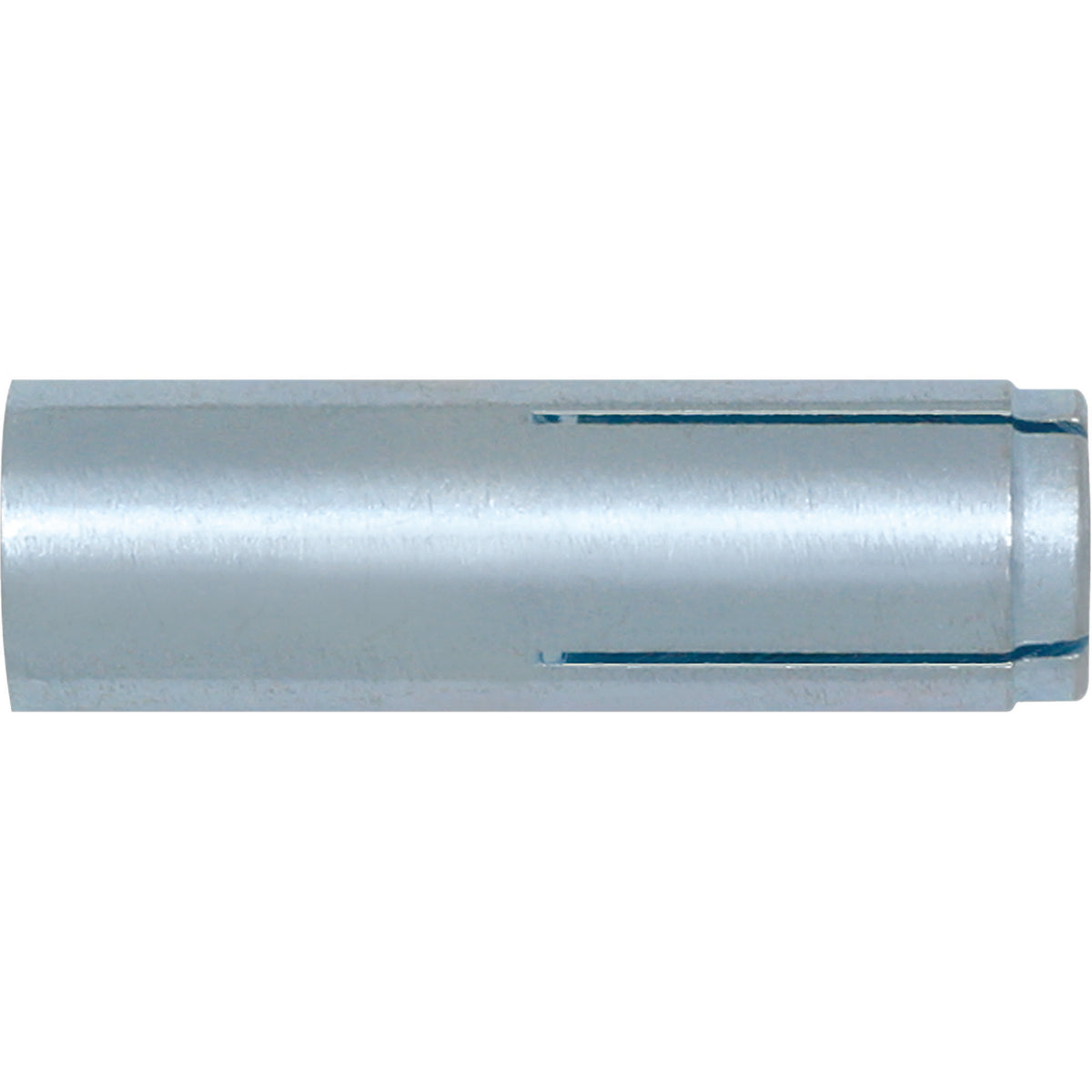

Internally Threaded Smooth Wall Expansion Anchor - 5/8"

Name: Internally Threaded Smooth Wall Expansion Anchor - 5/8"
Brand: DEWALT
SKU: 06320-PWR
Price: 1.82 USD
Availability: InStock

06320-PWR

$1.82

$1.82 ~~$0.91~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Internally threaded anchor for easy bolt removability and service work
• Smooth wall drop-in can be installed flush mounted or below the base material surface
• Flanged (lipped) version installs flush for easy inspection and standard embedment
• Coil thread version accepts coil rod and typically used for concrete formwork applications

DIMENSIONS

LENGTH	2.5 in

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Steel Drop-in™ is an all steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.

SPECIFICATIONS

Bolt/Rod Size	5/8 in
Drill Size	7/8 in
Material	Carbon Steel
Minimum Embedment Depth	2-1/2 in
Overall Length	2-1/2 in
Thread Size	5/8-11
Thread Type	UNC
Type	Internally Threaded Smooth Wall
