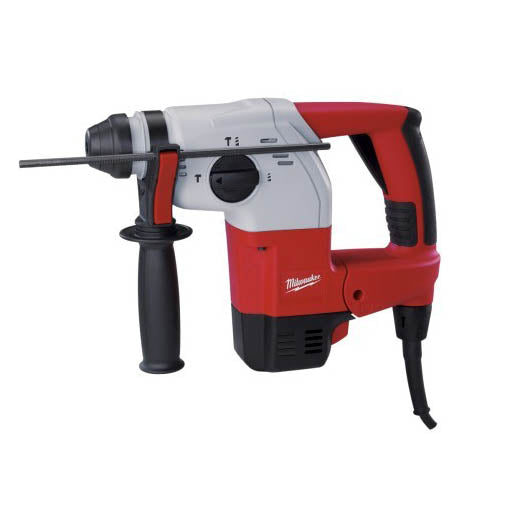

Reversing Corded Rotary Hammer Kit - 0 to 5980 Bpm
Reversing Corded Rotary Hammer Kit - 0 to 5980 Bpm
5363-21
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Powerful 7 A reversible motor delivers a hard hitting 2 ft-lb of impact energy
• All metal gear case and block construction provides optimal bearing and gear seating for long term durability
• AVS anti-vibration system - minimizes vibration for less operator fatigue
• Versatile 1 in solid bit capacity and 2-1/2 in thin wall core bit capacity in concrete
• 3-mode operation like choose hammer, drill or chipping for maximum versatility
• Rotating brush plate provides equal power in forward and reverse for easy removal of jammed bits, plus extends brush life
• L-shaped compact and lightweight design provides excellent balance and hand position for maximum control, especially overhead
• 10 ft fixed cord
DIMENSIONS
DIMENSIONS
|
LENGTH |
12.25 in |
|---|
WARRANTY
WARRANTY
5 Years
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Three-mode operation provides maximum versatility in this compact but powerful rotary hammer. If you drill into concrete often, the 1 in compact SDS Plus rotary hammer delivers unmatched performance and ergonomics. At just 8 lb, the compact well balanced, L-shaped design fits into small spaces and positions your hand directly behind the bit for maximum control, even when drilling overhead. Milwaukee® unique anti-vibration system (AVS), soft-grip handle and two-finger trigger control make it more comfortable for long-term use. The heavy duty 7 A motor delivers 2 ft-lb of impact energy and up to 5980 bpm for fast drilling and powerful chipping. A rotating brush plate provides equal power in forward and reverse so you can easily remove jammed bits. You will get extended brush life and long-term durability with the all-metal, magnesium gear case and block construction. A pre-set clutch protects against sudden motor overloads.
SPECIFICATIONS
|
Amperage Rating |
7 A |
|---|---|
|
Blows per Minute |
0 to 5980 bpm |
|
Chuck Size |
1 in |
|
Chuck Type |
SDS Plus® |
|
Control Type |
Forward/Reverse Switch/Clutch |
|
Handle Type |
D-Handle/Soft Grip/Side |
|
Impact Energy |
2 ft-lb |
|
Max Core Bit Compatibility |
2-1/2 in |
|
Maximum Solid Bit Capacity |
1 in |
|
No-Load Speed |
0 to 1400 rpm |
|
Number of Speeds |
3 |
|
Overall Length |
12-1/4 in |
|
Reversible |
Yes |
|
Tool/Kit |
Kit |
|
Torque Rating |
2 ft-lb |
