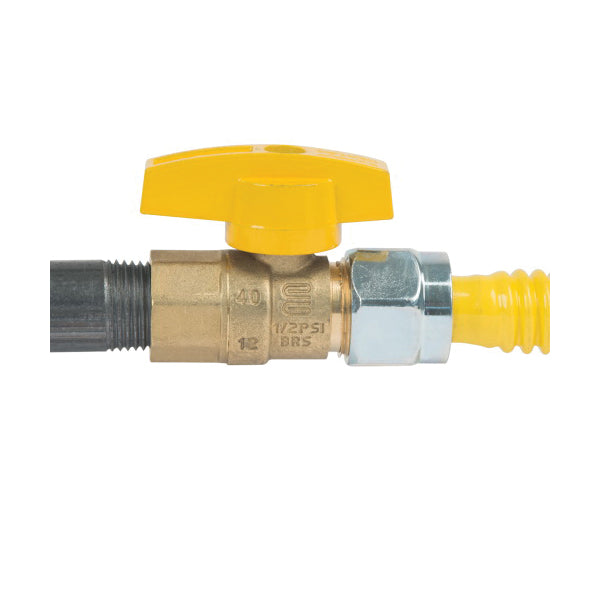

5/8 x 1/2" Gas Ball Valve - Brass - Flare x FNPT
5/8 x 1/2" Gas Ball Valve - Brass - Flare x FNPT
TBV10-8
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.51 lb |
|---|
PRODUCT OVERVIEW
BrassCrafts exclusive line of Italian-made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. This gas ball valve installs directly to the gas pipe stubout at the appliance to regulate gas flow.
SPECIFICATIONS
|
Actuator Type |
Handle |
|---|---|
|
Body Material |
Brass |
|
End Style |
Flare x FNPT |
|
Inlet to Outlet Length |
2-1/2 in |
|
Media |
Gas |
|
Nominal Size |
5/8 x 1/2 in |
|
Orifice Size |
0.51 in |
|
Pressure Rating |
5 psi |
|
Softgoods Material |
PTFE Seat/FKM O-Ring |
|
Temperature Rating |
-40 to 150 deg F |
|
Top to Inlet Center |
1-1/2 in |
|
Trim Material |
Extruded Brass |

$25.79
