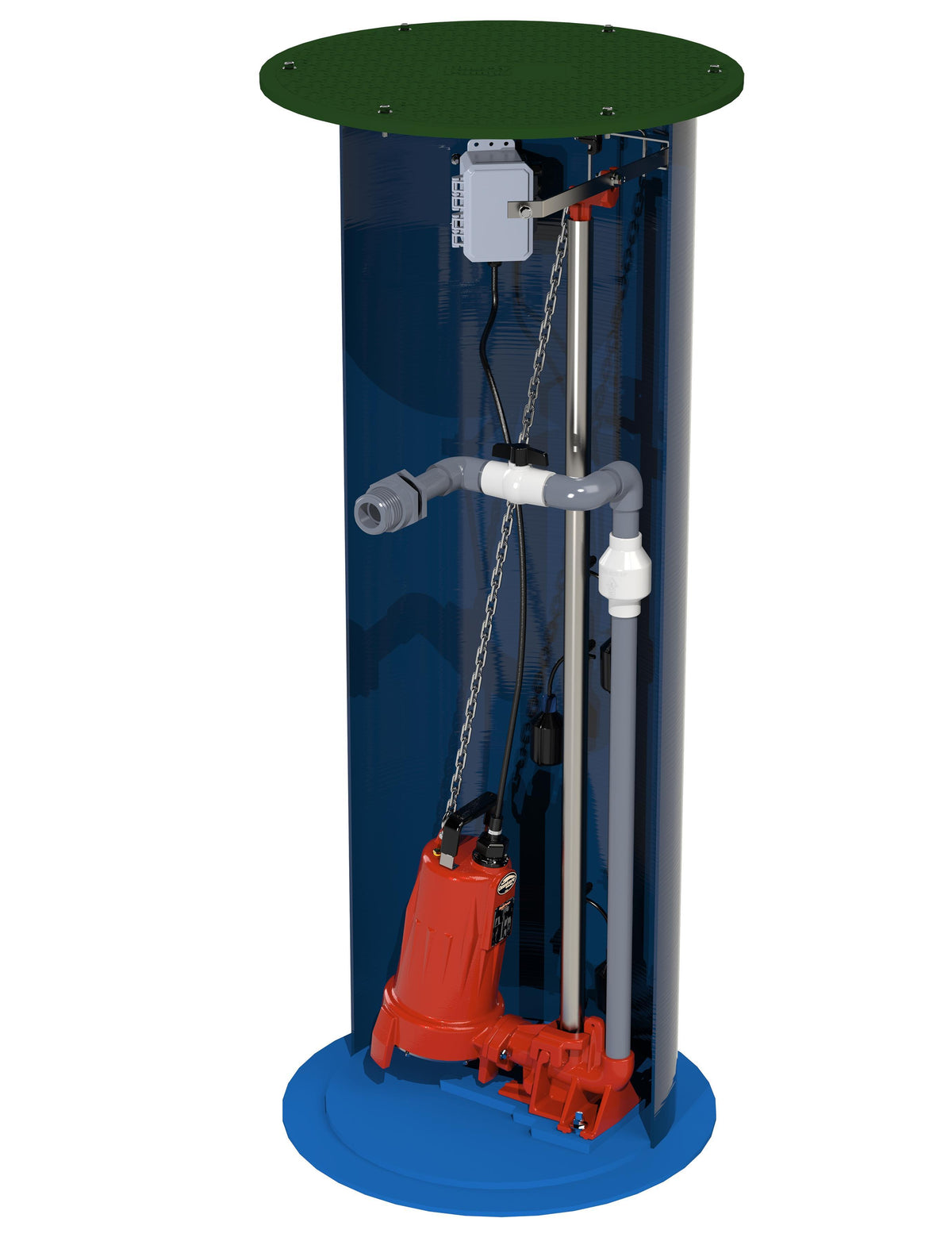

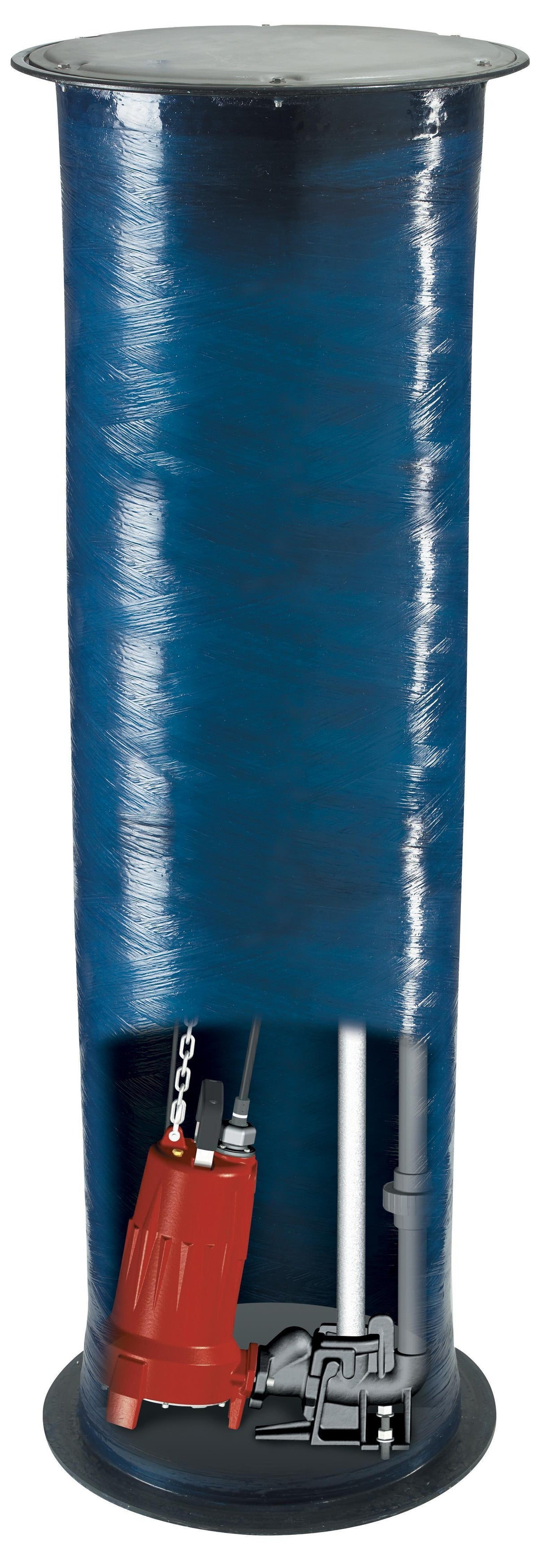

Free Standing Grinder Pump - Fiberglass

Name: Free Standing Grinder Pump - Fiberglass
Brand: LIBERTY PUMPS
SKU: 2472LSG202-36-S
Price: 5381.25 USD
Availability: InStock

2472LSG202-36-S

$5,381.25

$5,381.25 ~~$7,175.00~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Factory assembled 2hp grinder pump 24 in diameter system
• Pre-mounted floats for pump control and alarm
• 4 in Fiberglass hub with 4 in rubber pipe seal
• Integral check valve
• All stainless steel supports and brackets pre-mounted
• 36 in discharge depth
• 25' power cord

DIMENSIONS

LENGTH	48 in
WIDTH	28 in
HEIGHT	72 in
WEIGHT	237 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet

Installation Instructions

PRODUCT OVERVIEW

SPECIFICATIONS

Amperage Rating	15 FLA
Basin Capacity	141 gal
Bearing Type	Upper Radial and Lower Thrust
Cord Type	SJOOW
Dimensions	72 in H x 28 in W x 48 in L
Domestic/Import	Domestic
Enclosure Type	NEMA 4X
Frequency Rating	60 Hz
Horsepower	2 hp
Impeller Type	300 Stainless Steel
Inlet Size	4 in
Material	Fiberglass
Maximum Flow Rate	50 gpm
Maximum Head	110 ft
Motor Speed	3450 rpm
