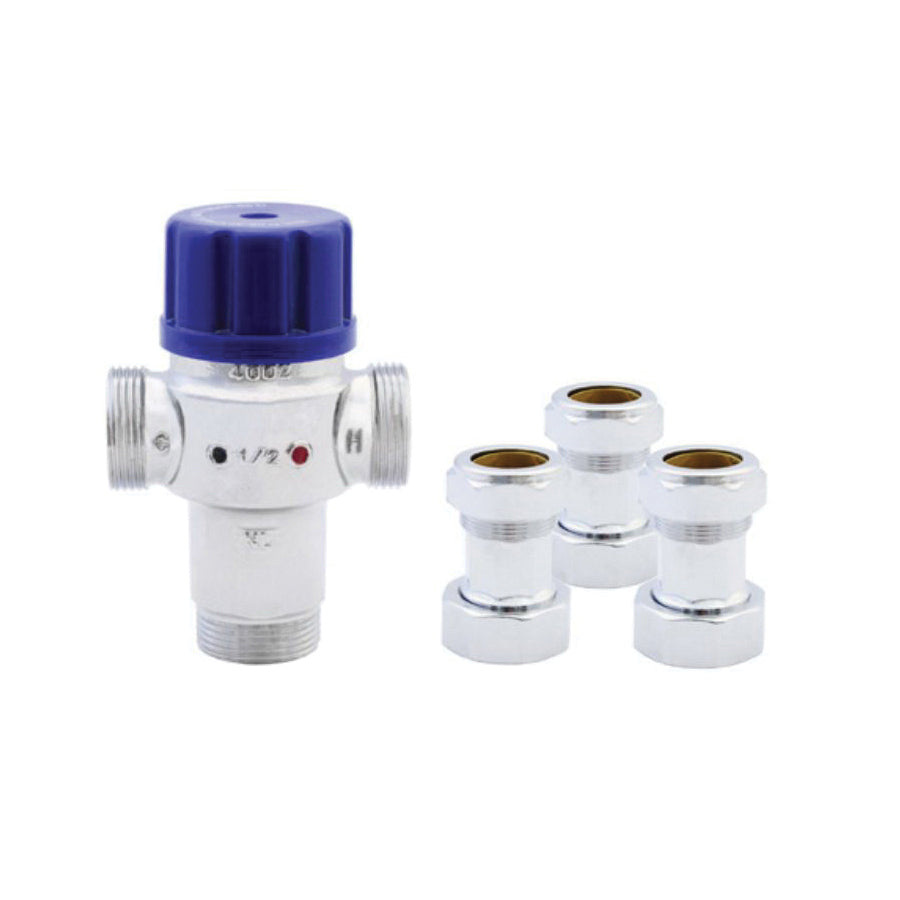

LEGEND 115-273NLC T-46NL 3-Way Radiant Thermostatic Mixing Valve, 1/2 in Nominal, Compression End Style, 145 psi CWP Pressure, 15 gpm Flow Rate, Forged Brass Body, Domestic

LEGEND 115-273NLC T-46NL 3-Way Radiant Thermostatic Mixing Valve, 1/2 in Nominal, Compression End Style, 145 psi CWP Pressure, 15 gpm Flow Rate, Forged Brass Body, Domestic

115-273NLC

$199.38
$199.38 $293.03
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Designed to prevent scalding and thermal shock in domestic or commercial potable water distribution systems
• The temperature-actuated three-way thermostatic mixing design, permits precise water temperature control to the hydronic heating loop or hot water distribution system
• Durable poly-resin piston is self-lubricating and dramatically reduces corrosion and scale accumulation, resulting in a longer service life
• The stem cap cannot be rotated, it is fastened to the stem and cannot be used as a tool to adjust the temperature settings, thereby preventing unauthorized adjustment

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The T-46NL is designed for domestic hot water distribution and is third-party certified ASSE 1017. The kit includes three connectors with union nuts, hot and cold inlet connectors with a check valve and one outlet connector without a check valve. Copper sweat connectors do not include the integral check valve. It is suitable for radiant heating systems. Select desired temperature by mixing cold and hot water. Remove the screw holding the cap to adjust the setting, then adjust the nut using a wrench to set desired mixed outlet water temperature. The T-46NL is constructed of no lead, forged brass and is chrome plated.
