WAGNER BY DIVERSITECH

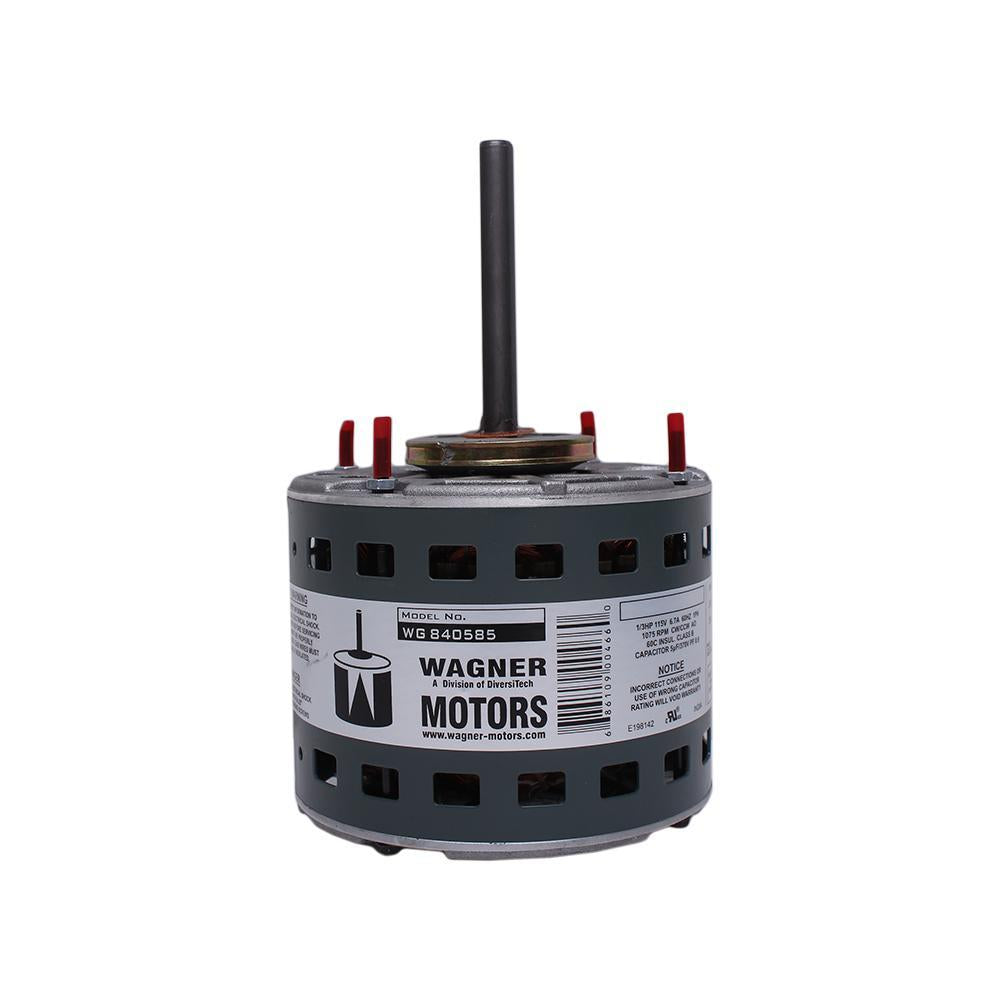

Wagner by Diversitech WG840585 Direct Drive Furnace Blower Motor, OAO Enclosure, 1/3 hp, 115 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount

Wagner by Diversitech WG840585 Direct Drive Furnace Blower Motor, OAO Enclosure, 1/3 hp, 115 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount

WG840585

$0.00
$0.00
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
• Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
• Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently

WARRANTY

2 Years

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

This Wagner® WG840585 Direct Drive Furnace Blower Motors, 1/3hp, 1075/3 RPM, 5.0FLA, 115V motor installs with all standard 48 frame mounting brackets. It is protected by an automatic overload and class B insulation. The motor is electrically reversible and features 36 in. leads to ease installation.
