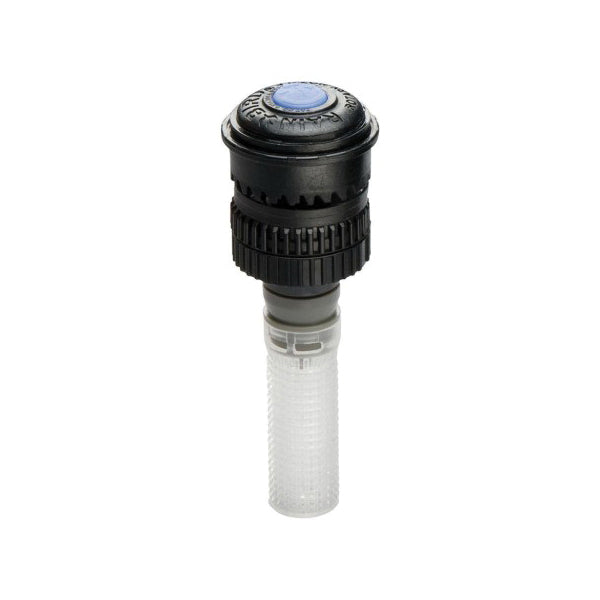

R13-18 - Rotary Nozzle - 1.96 GPM

• Low precipitation rate 0.60 in/hr (15,2 mm/hr) - reduces run-off and erosion

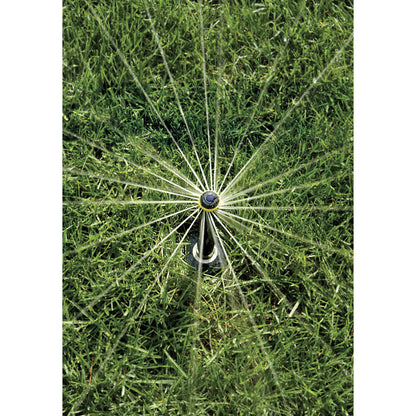

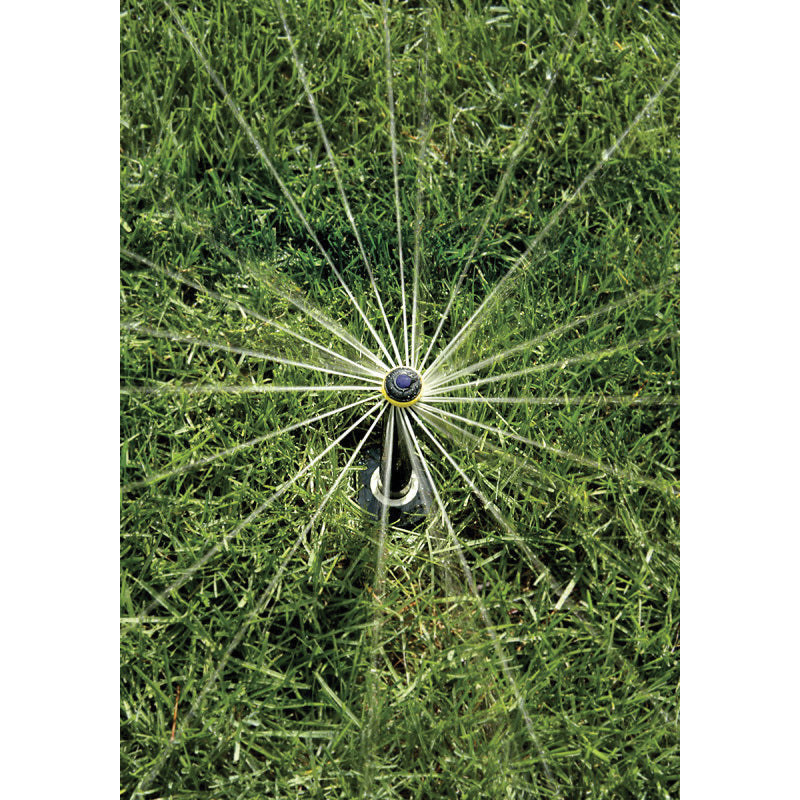

• Multiple, rotating streams uniformly distribute water throughout the radius range
• Matched precipitation rate across radii and pattern simplify the design process
• Matched precipitation rate with Rain Bird 5000/5000 Plus MPR Rotor Nozzles allow MPR irrigation designs from 13 ft to 35 ft
• With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost
• Maintains highly efficient performance throughout the 20-55 psi pressure range, with no misting or fogging at high pressures

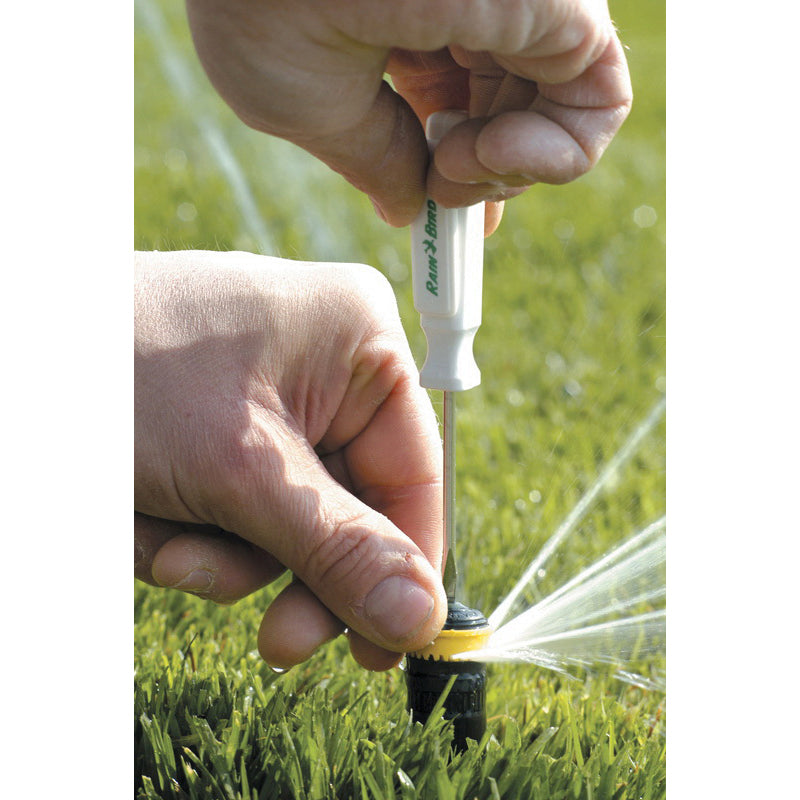

• Stainless steel radius reduction screw allows reduction down to 13 ft to accommodate varying landscape needs
• Rain Bird rotary nozzles offer color-coded top plugs to help you quickly identify the arc/pattern
• Color-coded radius adjustment plugs for easier identification
• 45 psi recommended operating pressure
