RAIN BIRD

5000 Plus - Pop-Up Rotor Sprinkler - 0.73 to 9.63 GPM

5000 Plus - Pop-Up Rotor Sprinkler - 0.73 to 9.63 GPM

5006PLPC

$40.78
$40.78 $52.55
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

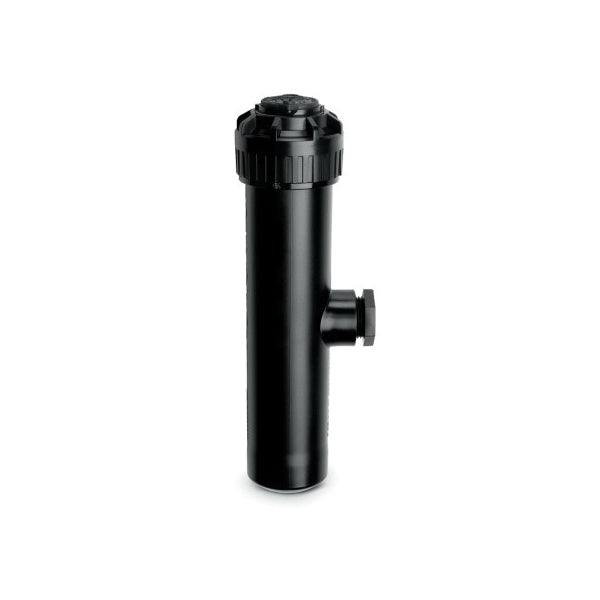

• 6 in 5000 series full circle pattern pop-up rotor with flow shut-off
• Faster maintenance with a new self-cleaning arc adjustment screw
• Heavy-duty cover assembly for extra durability
• Rain Curtain™ Nozzles
• Slip clutch mechanism for quick adjustment on installation
• Heavy-duty retract spring assures positive pop-down
• Top-adjust arc adjustment requiring only a flat-blade screwdriver
• 40 to 360 deg arc rotation and reversing full circle rotation in one
• Radius adjustment screw allows up to 25% radius reduction without changing nozzles
• Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

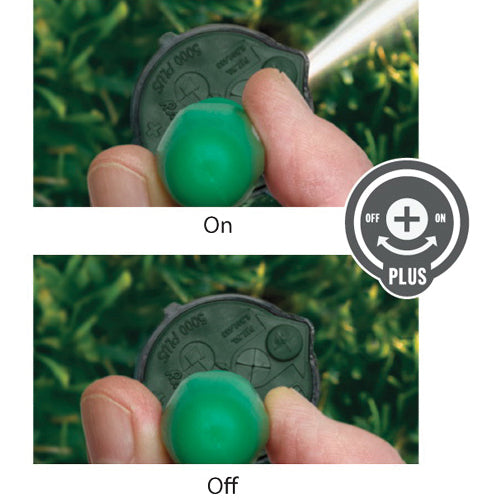

5000 Plus Series rotors feature a flow shut-off device that turns the rotor on and off at the head using a flat blade screwdriver while the system is still in operation. Maintenance is easier, allowing you to flush zones and install nozzles without going back to the valve or controller. You can also troubleshoot for leaks by turning off all heads on a zone. 5000 Plus Series rotors feature a green rubber cover for extra protection.

SPECIFICATIONS

Coverage

25 to 50 ft

Flow Rate

0.73 to 9.63 gpm

Hose Connection Type

FNPT

Nozzle Size

3/4 in

Pressure Rating

25 to 65 psi

Series

5000 Plus

Spray Pattern

Full/Part Circle
