LEH200 - 2 HP - 6.6 A Full Load/31 A Locked Rotor
LEH200 - 2 HP - 6.6 A Full Load/31 A Locked Rotor
LEH204M3-2
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Cast iron housings and volute
• Oil-filled, hermetically sealed motor
• 303 stainless steel rotor shaft
• Permanently lubricated upper and lower ball bearings
• Dual shaft seals
• Quick-connect 25' power cord
DIMENSIONS
DIMENSIONS
|
WIDTH |
13 in |
|---|---|
|
HEIGHT |
21 in |
|
WEIGHT |
91 lb |
WARRANTY
WARRANTY
3 Years
PRODUCT OVERVIEW

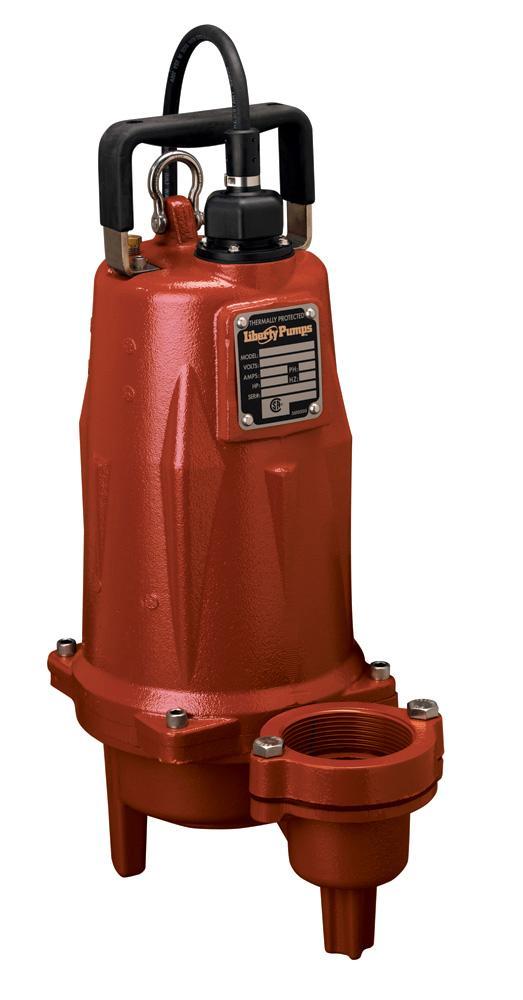

The LEH200 by Liberty is a high-head 2 in solids-handling sewage pump. The LEH200 features Liberty's unique one-piece cast iron body and quick-disconnect cords in 25 ft standard length. Available in 2 or 3 in flanged discharge and a variety of voltages, the LEH200 has a maximum head of 83 ft and is backed by Liberty's 3 years warranty.
SPECIFICATIONS
|
Amperage Rating |
6.6 A Full Load/31 A Locked Rotor |
|---|---|
|
Bearing Type |
Ball |
|
Cord Type |
SEOOW 25 ft |
|
Dimensions |
13 in W x 21 in H |
|
Flow Rate |
200 gpm |
|
Frequency Rating |
60 Hz |
|
Horsepower |
2 hp |
|
Impeller Type |
Cast Iron 2-Vane Enclosed |
|
Material |
Cast Iron |
|
Maximum Head |
82 ft |
|
Motor Speed |
3450 rpm |
|
Outlet Size |
3 in Flanged |
|
Phase |
3 |
|
Series |
LEH200 |

$1,988.25
