LIBERTY PUMPS

LE100, 1 hp, 5.3 A Full Load/18.3 A Locked Rotor

LE100, 1 hp, 5.3 A Full Load/18.3 A Locked Rotor

LE103M2-2



Regular price $1,293.75
Sale price $1,293.75 Regular price $1,725.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Cast iron housing and volute
• Stainless and brass fasteners
• Oil-filled, hermetically sealed motors
• Permanently lubricated upper and lower ball bearings
• Unitized shaft seals
• Adjustable pumping range
• Quick-connect 25' power cord

DIMENSIONS

WIDTH

12.5 in

HEIGHT

18.9 in

WEIGHT

68 lb

WARRANTY

3 Years

PRODUCT OVERVIEW

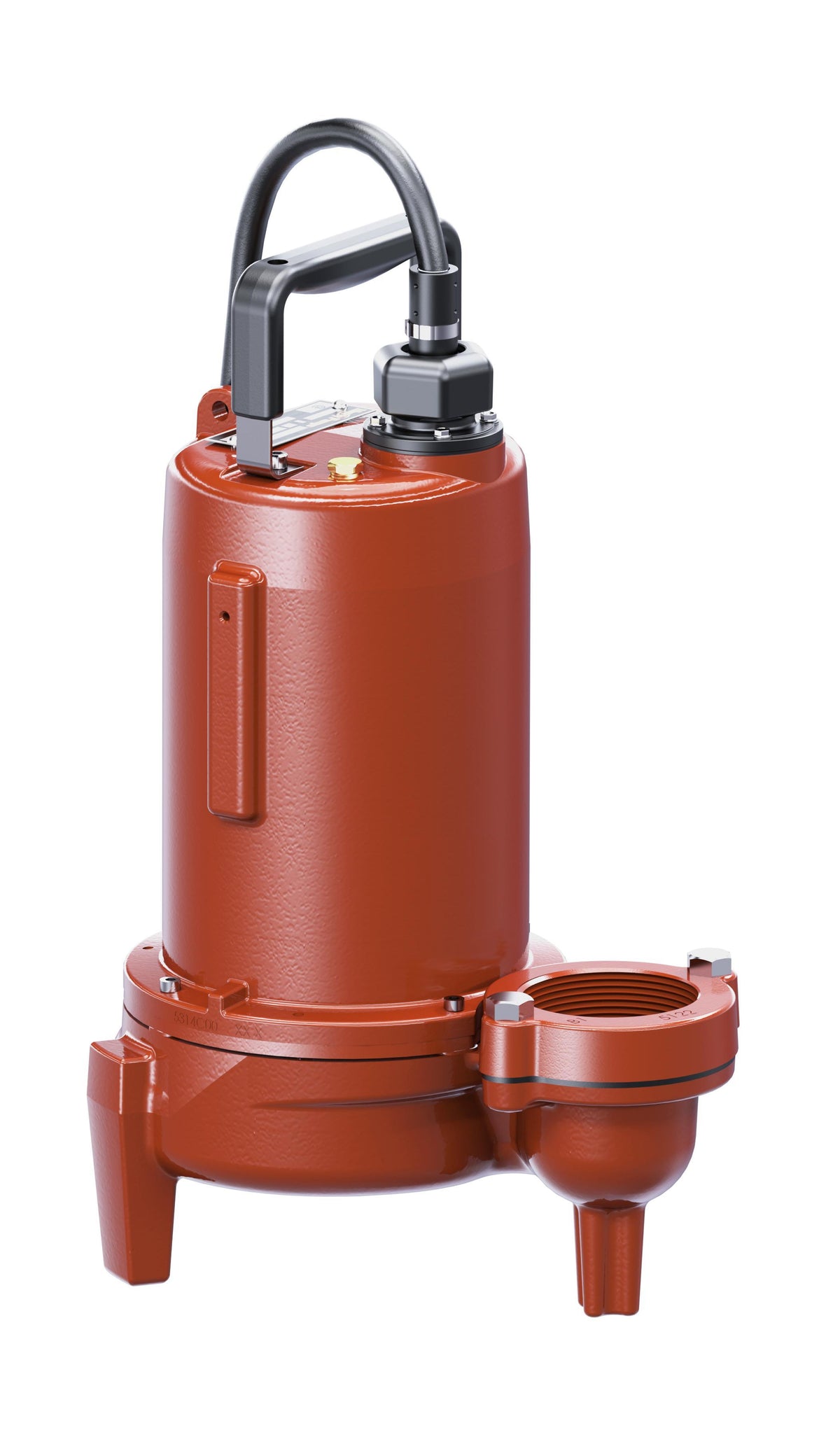

Liberty's LE100 series is a 1 hp sewage pump with 2 in solids-handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners, the LE100 is designed for years of trouble-free performance. Its quick-disconnect power cord allows for easy interchange and is available in 10 ft, 25 ft and 35 ft lengths. The LE100 can be ordered in 2 or 3 in discharge configurations and a wide range of voltages.


SPECIFICATIONS

Amperage Rating

5.3 A Full Load/18.3 A Locked Rotor

Bearing Type

Ball

Cord Type

SEOOW 25 ft

Dimensions

12.5 in W x 18.9 in H

Flow Rate

109 gpm

Frequency Rating

60 Hz

Horsepower

1 hp

Impeller Type

Cast Iron 2-Vane Semi-Open

Material

Cast Iron

Maximum Head

39 ft

Motor Speed

1725 rpm

Outlet Size

2 in Flanged

Phase

3

Series

LE100
