HALO

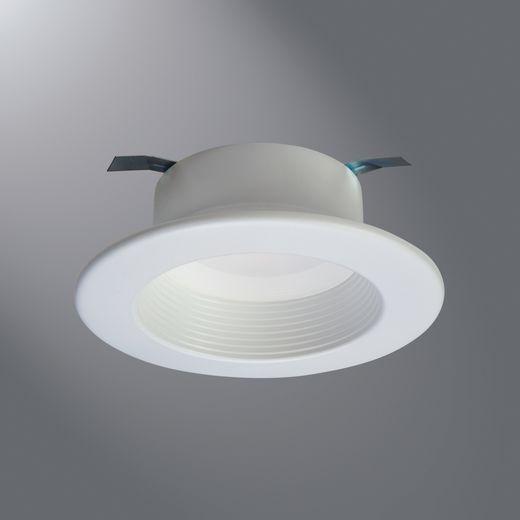

4" Aperture Integrated Retrofit Module - Ceiling Mount

4" Aperture Integrated Retrofit Module - Ceiling Mount

RL4069S1EWH

$21.53
$21.53 $15.50
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Durable die cast construction
• Regressed baffle
• Matte white paint finish
• Diffusing for even illumination
• Impact-resistant polycarbonate
• High lumen transmission
• Push-N-Twist™ universal installation clips
• A tight chromaticity specification ensures LED color uniformity, sustainable color rendering index (CRI) and correlated color temperature (CCT) over the useful life of the LED
• High efficacy LED with integral driver
• Compatible with most 4 in recessed housings

DIMENSIONS

HEIGHT

2.43 in

WEIGHT

0.88 lb

WARRANTY

5 years Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Halo RL4 seleCCTable™ is a complete LED baffle trim module for 4 in aperture recessed downlights, suitable for new construction, remodel and retrofit installation. Using the CCT selectable switch users can chose between 5-different color temperatures. The lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE® for added savings and code compliance.

SPECIFICATIONS

Amperage Rating

0.063 A

Average Life

70000 hr

Ballast Type

Integral Dimming

Color Rendering Index (CRI)

91

Color Temperature

3000 K

Dimensions

5.12 in Dia x 2.43 in H

Housing Material

Metal

Lamp Base Type

E26

Lamp Wattage

9 W

Lens Type

Regressed Convex Diffused Polycarbonate

Light Color

Soft White

Light Output

75.7 Lumens/W

Lumens

575 Lumens

Mounting Type

Ceiling

Number of Lamps

1
