IDEAL

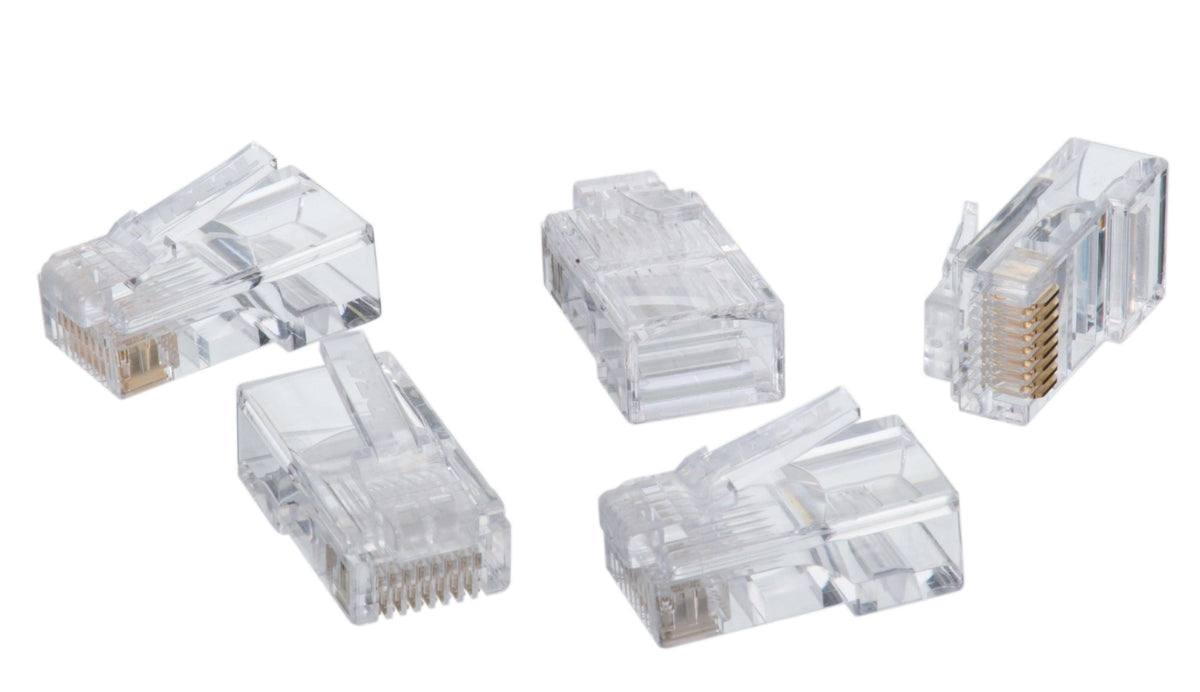

IDEAL® 85-346 8P8C Non-Keyed Round Modular Plug, Solid Conductor, Plastic

IDEAL® 85-346 8P8C Non-Keyed Round Modular Plug, Solid Conductor, Plastic

85-346

$16.58
$16.58 $12.10
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 100 MHz cables
• 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
• Designed to work seamlessly with IDEAL Telemastercrimping tools
• Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster and FT-45 series of modular plug crimp tools. Plugs are designed and manufactured to support all 100O cable wiring schemes including the widely used TIA-568A and TIA-568B configurations.
