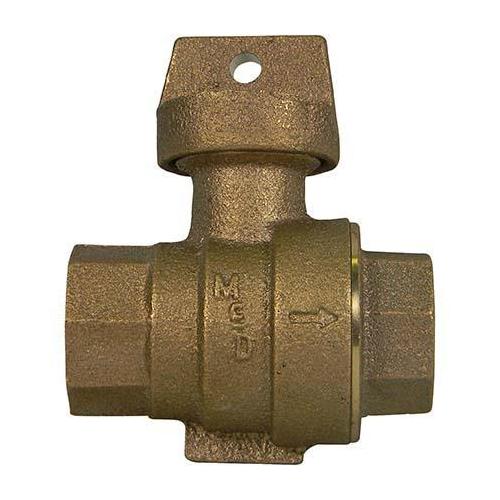

1-1/2" Ball Curb Stop - Brass - FNPT
1-1/2" Ball Curb Stop - Brass - FNPT
AY7600112
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• PTFE coated brass ball
• Rated for 150 psig water pressure with cast directional arrow
• Blow-out proof EPDM port seals
• Joints sealed with EPDM O-Rings and thread locker
• Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
• Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision)
• EPDM O-ring
WARRANTY
WARRANTY
Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
A.Y. McDonald® stop and drain ball valves maintain their low turning torques and bubble-tight 150 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. Mc Donald stop and drain ball curb stops offer positive shut-off from inlet direction only, and are available with a wide variety of end connections or Minneapolis curb box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.
SPECIFICATIONS
|
Ball Material |
Brass |
|---|---|
|
Body Material |
Brass |
|
End Style |
FNPT |
|
Inlet to Outlet Length |
4.88 in |
|
Media |
Water |
|
Nominal Size |
1-1/2 in |
|
Pressure Rating |
150 psi |
|
Series |
76001 |
|
Softgoods Material |
EPDM |
|
Top to Inlet Center |
3.4 in |
|
Trim Material |
EPDM Port Seal |
