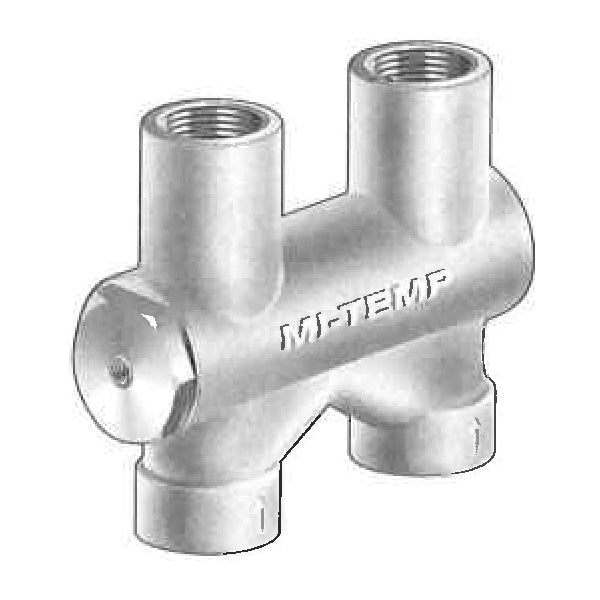

1/2" Automatic Pressure Balance Valve - 12 GPM - Cast Brass
1/2" Automatic Pressure Balance Valve - 12 GPM - Cast Brass
MI-TEMP
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
3.88 in |
|---|---|
|
HEIGHT |
3.5 in |
|
WEIGHT |
1.6 lb |
WARRANTY
WARRANTY
1 Year Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The MI-TEMP holds a selected water temperature to within one degree from any constant hot water supply regardless of pressure changes in the supply lines. It ensures a blend of mixed hot and cold water at the shower head and is fully automatic - only one moving part will equalize the hot and cold supply line pressures. As supply line pressures fluctuate, the brass piston will move enough to compensate for the change in pressure and release water only at the preselected temperature.
SPECIFICATIONS
|
Body Material |
Cast Brass |
|---|---|
|
Dimensions |
3-1/2 in H x 3-7/8 in W |
|
End Style |
FNPT |
|
Flow Rate |
12 gpm |
|
Nominal Size |
1/2 in |
|
Pressure Rating |
60 psi |
|
Type |
Automatic |

$195.11
