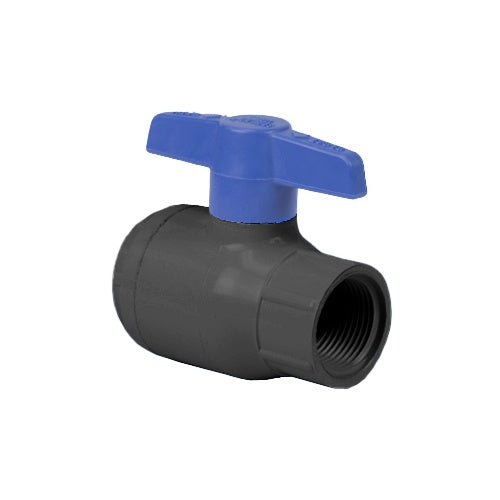

1/2" Utility Ball Valve - PVC - FNPT
1/2" Utility Ball Valve - PVC - FNPT
2621-005G
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• PVC white, PVC gray or CPVC construction
• 1-piece sealed unit
• Full SCH 80/XH bore
• High impact polypropylene handle
• Safe-T-Shear® stem
• EPDM O-ring

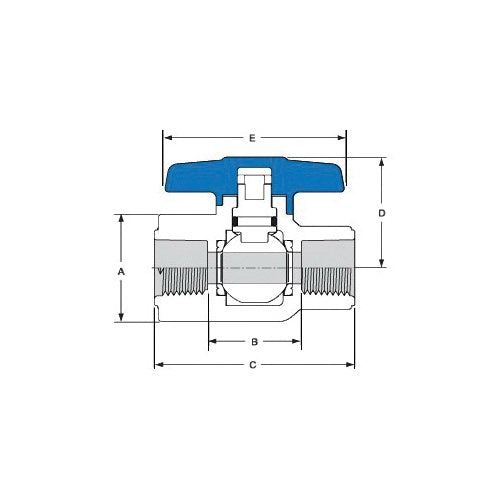

DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.17 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
A high quality, economical quarter-turn shut-off valve designed for irrigation, pool and spa, and general purpose applications. IPS sizes 1/2 to 2 in available in PVC White, PVC Gray or CPVC with socket or threaded end connectors. Sizes 3 to 4 in available in PVC White with socket or threaded end connectors. 6 in size available in PVC White with socket end connectors and high efficiency lever style handle for easier operation.
SPECIFICATIONS
|
Actuator Type |
T-Handle |
|---|---|
|
Ball Material |
PVC |
|
Body Material |
PVC |
|
Domestic/Import |
Domestic |
|
End Style |
FNPT |
|
Inlet to Outlet Length |
2-11/16 in |
|
Nominal Size |
1/2 in |
|
Pressure Rating |
150 psi |
|
Softgoods Material |
EPDM |
|
Temperature Rating |
140 deg F |
|
Top to Inlet Center |
1-11/16 in |
|
Trim Material |
PVC Stem |

$11.81
