1/4" Lab Ball Valve - PVC - FNPT
1/4" Lab Ball Valve - PVC - FNPT
1521-002
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Chemical and corrosion resistant PVC or CPVC construction
• High impact polypropylene handle
• Assembled with silicone-free, water soluble lubricant
• Maintenance-free sealed unit
• Individual valve or multi-functional valve and adapter kit
• SCH 80/XH full bore design
• EPDM O-ring
• Quarter-Turn Shut-Off

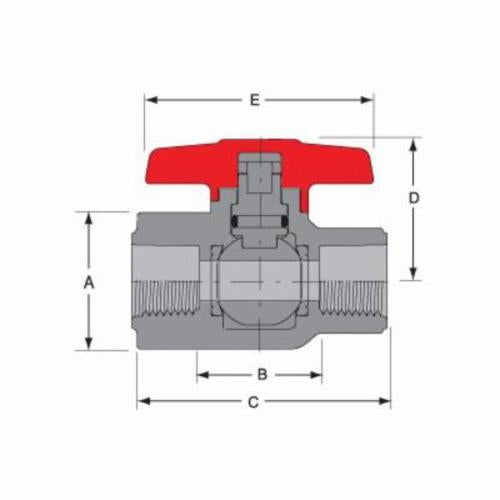

DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.07 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded Valve and Adapter Kit to provide multiple connection options.
SPECIFICATIONS
|
Actuator Type |
T-Handle |
|---|---|
|
Ball Material |
PVC |
|
Body Material |
PVC |
|
Domestic/Import |
Domestic |
|
End Style |
FNPT |
|
Inlet to Outlet Length |
2-1/8 in |
|
Nominal Size |
1/4 in |
|
Pressure Rating |
150 psi |
|
Softgoods Material |
EPDM |
|
Temperature Rating |
140 deg F |
|
Top to Inlet Center |
1-1/16 in |
|
Trim Material |
PVC Stem and PTFE Seat |

$25.64
