Item Status:
Discontinued
Availability is limited to remaining stock.

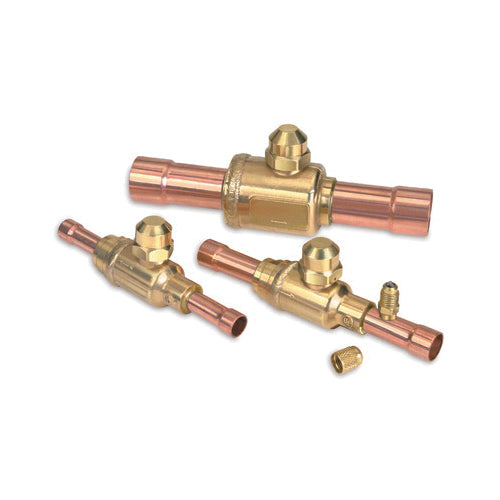

1-5/8" Refrigerant Ball Valve - V34408
1-5/8" Refrigerant Ball Valve - V34408
V34408
Regular price
$192.58
Sale price
$192.58
Regular price
$192.20
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Brass actuators
• PTFE seat/stem packing
DIMENSIONS
DIMENSIONS
|
LENGTH |
8.85 in |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
JB's ball refrigeration valves have a large port design that provides a minimum pressure drop with straight through flow. Copper end fittings reduce installation time without disturbing the valve. Our traditional ball valves have brass actuators and a working pressure rating of 500 psi. No bolted or screwed bonnets or flanges to leak. UL listed 57R7.
SPECIFICATIONS
|
Dimensions |
8.85 in L |
|---|---|
|
Domestic/Import |
Domestic |
|
End Style |
ODS Extension |
|
Material |
Brass |
|
Nominal Size |
1-5/8 in |
|
Pressure Rating |
500 psi |
|
Temperature Rating |
300 deg F |
