Item Status:
Discontinued
Availability is limited to remaining stock.

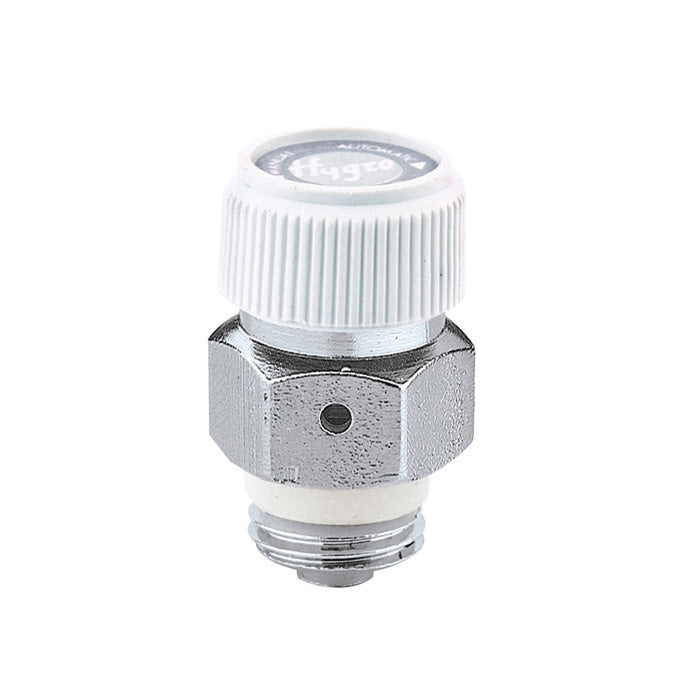

1/8" Hygroscopic Automatic/Manual Compact Air Vent - Brass
1/8" Hygroscopic Automatic/Manual Compact Air Vent - Brass
508013A
Regular price
$8.08
Sale price
$8.08
Regular price
$10.30
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Manual operation by rotating knob counterclockwise
• 15 psi low pressure steam
DIMENSIONS
DIMENSIONS
|
HEIGHT |
1.25 in |
|---|---|
|
WEIGHT |
0.1 lb |
WARRANTY
WARRANTY
Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The purpose of the radiator air vent valve is to remove, either manually or automatically, any air trapped inside the heat emitters both during the filling of the system and in normal operation. The drain valve, on the other hand, makes it possible to easily discharge the water contained in the radiator, thanks to the extractor which is inserted into the valve itself.
SPECIFICATIONS
|
Connection Type |
MNPT |
|---|---|
|
Dimensions |
11/16 in Dia x 1-1/4 in H |
|
Domestic/Import |
Import |
|
Material |
Brass |
|
Nominal Size |
1/8 in |
|
Series |
5080 |
|
Temperature Rating |
212 deg F |
|
Working Pressure |
150 psi |

1/8" Hygroscopic Automatic/Manual Compact Air Vent - Brass
$8.08
