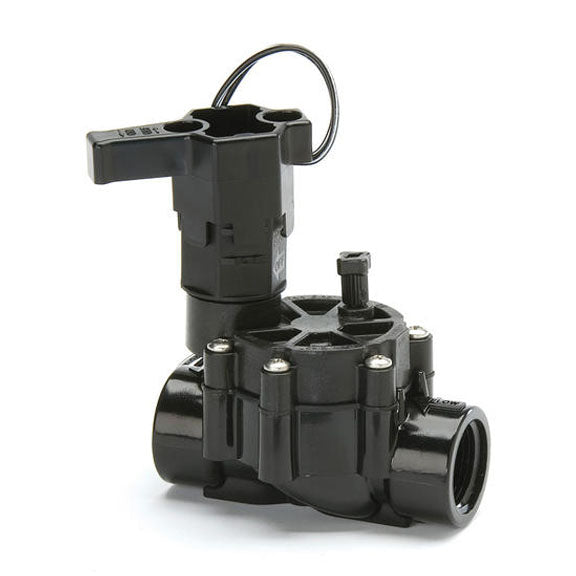

1 FPT RAINBIRD STR VALVE

Rain Bird Straight Valve 1"
SKU: 100DV

• Double-filtered pilot-flow design for maximum reliability.



• Balanced-pressure diaphragm for long life.



• External bleed to manually flush system of dirt and debris during installation and system start-up.



• Internal bleed for spray-free manual operation.



• Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.



• Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.



• Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.



• 1.25" (3,2 cm) stainless steel phillips head screws.



• Accepts latching solenoid for use with Rain Bird battery-operated controllers.
