JOMAR VALVE

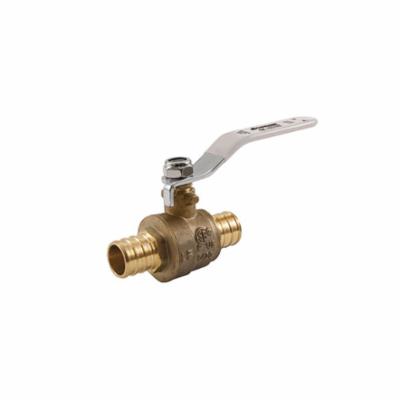

1" 2-Piece Ball Valve - Brass - PEX (Crimp)

1" 2-Piece Ball Valve - Brass - PEX (Crimp)

103-525PG

$24.57
$24.57 $38.44
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested
• Wetted surfaces contains less than 0.25 % lead content
• Crimp connection rated to 100 psi WOG up to 180 deg F
• PTFE packing and EPDM stem O-ring

DIMENSIONS

WEIGHT

37 lb

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Actuator Type

Lever Operated

Ball Material

Chrome Plated Brass

Body Material

Brass

End Style

PEX (Crimp)

Inlet to Outlet Length

3.27 in

Nominal Size

1 in

Port Type

Standard

Pressure Rating

400 psi WOG

Softgoods Material

PTFE/EPDM

Temperature Rating

180 deg F

Top to Inlet Center

1.57 in

Trim Material

Brass Stem and PTFE Seat

Type

2-Piece
