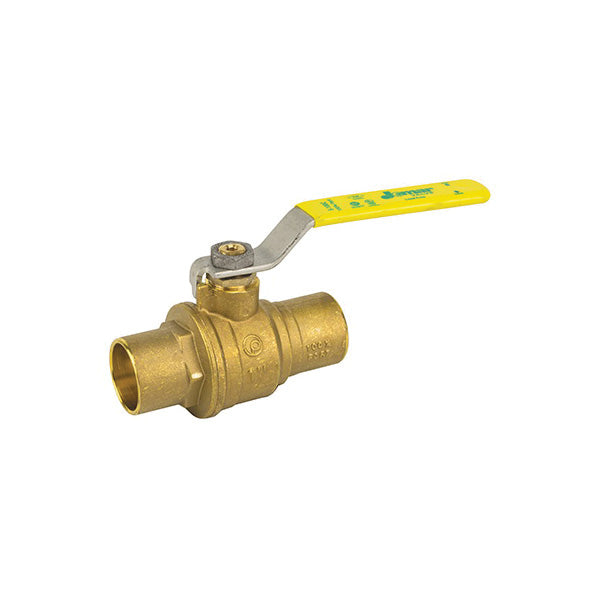

1" 2-Piece Ball Valve with Handle - Full Port

Name: 1" 2-Piece Ball Valve with Handle - Full Port
Brand: JOMAR VALVE
SKU: 100-415G
Price: 42.66 USD
Availability: InStock

100-415G

$42.66

$42.66 ~~$54.67~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Blow-out proof stem
• 100% leak tested
• Leak-proof stem lifetime warranty
• 29 in-Hg vacuum rating
• Wetted surfaces contains less than 0.25% lead content
• Triple sealing stem with (2) FKM O-Rings and PTFE seal
• CW510L TEA coated Lead free brass ball/body/stem
• 150 psi steam working pressure
• TFM 1600 hostaflon® packing and FKM O-ring

DIMENSIONS

WEIGHT	47 lb

DOCUMENTS & RESOURCES

Specification Sheet

Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material	TEA Coated Brass
Body Material	Brass
End Style	Solder
Inlet to Outlet Length	3.94 in
Nominal Size	1 in
Orifice Size	0.97 in
Port Type	Full
Pressure Rating	500 psi WOG
Softgoods Material	TFM/FKM
Top to Inlet Center	2.55 in
Trim Material	Brass Stem
Type	2-Piece
