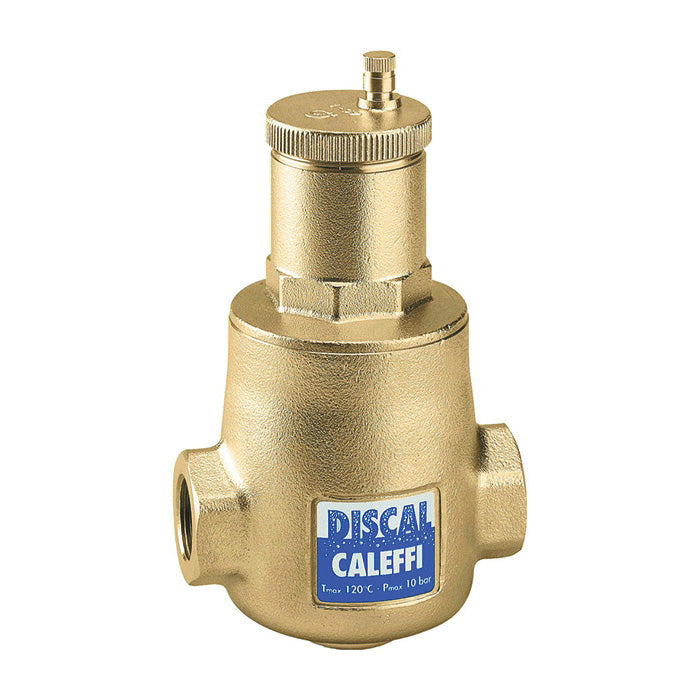

1" Air Separator - 551006A

1" Air Separator - 551006A

551006A

$233.42
$233.42 $228.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Air separators are used to continuously remove the air contained in the hydronic circuits of heating and cooling systems
• The air discharge capacity of these devices is very high
• They are capable of removing automatically all the air present in the system down to the micro-bubble level
• The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage
• Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released
• Stainless steel float guide pin and linkage
• 1/2 in FNPT bottom thread
• Glass reinforced nylon internal element
• Up to 100% removal air separation efficiency

DIMENSIONS

WIDTH

4.31 in

HEIGHT

7.5 in

WEIGHT

3.7 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

The DISCAL® air separator uses a coalescing element that consists of an element of concentric diamond pattern mesh surfaces. This element creates the whirling movement required to facilitate the release of micro-bubbles and their adhesion to these surfaces. The bubbles, fusing with each other, increase in volume until the buoyancy force overcomes the adhesion force to the surface. They rise to the top of the unit from where they are released through a float-operated automatic air release valve.

SPECIFICATIONS

Connection Type

FNPT

Dimensions

4-5/16 in W x 7-1/2 in H

Material

Brass

Nominal Size

1 in

Series

551

Suitable Media

Water/Glycol Solution

Temperature Rating

32 to 250 deg F

Working Pressure

150 psi
