A.Y. MCDONALD

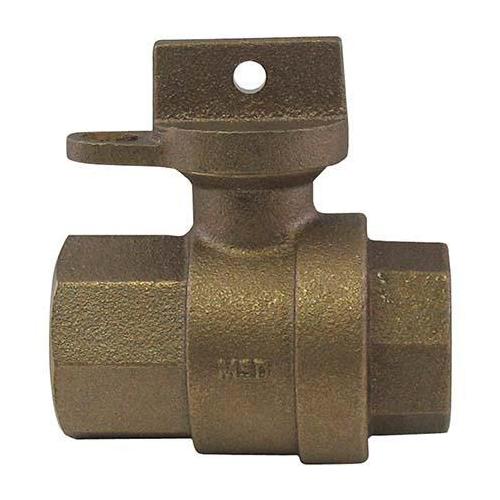

1" Ball Curb Stop - Brass Body

1" Ball Curb Stop - Brass Body

5139-113

$176.07
$176.07 $204.31
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• PTFE coated brass ball
• Rated for 300 psig water pressure
• Blow-out proof EPDM port seals
• End piece joint sealed with an EPDM O-Ring and thread locker
• Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
• Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision)
• EPDM O-ring

DIMENSIONS

WEIGHT

24 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

A.Y. McDonald® ball valve curb stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. McDonald® ball curb stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis curb box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.

SPECIFICATIONS

Ball Material

Brass

Body Material

Brass

End Style

FNPT

Inlet to Outlet Length

3.47 in

Media

Water

Nominal Size

1 in

Pressure Rating

300 psi

Softgoods Material

EPDM

Top to Inlet Center

2.65 in

Trim Material

EPDM Seal
