SPEARS

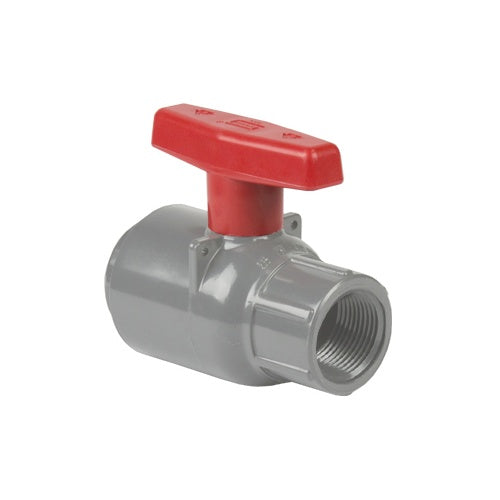

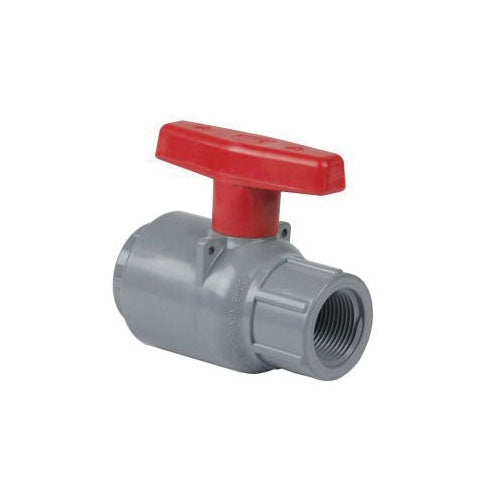

1" Compact Regular Ball Valve - CPVC - FNPT

1" Compact Regular Ball Valve - CPVC - FNPT

2121-010C

$51.47
$51.47 $55.65
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Heavy bodied PVC or CPVC construction
• High impact polypropylene handle
• Full SCH 80/XH bore
• Safe-T-Shear® stem
• EPDM O-ring
• Rated to 200psi at 73 deg F

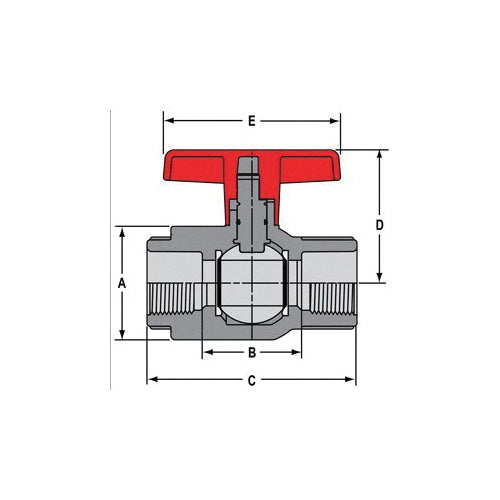

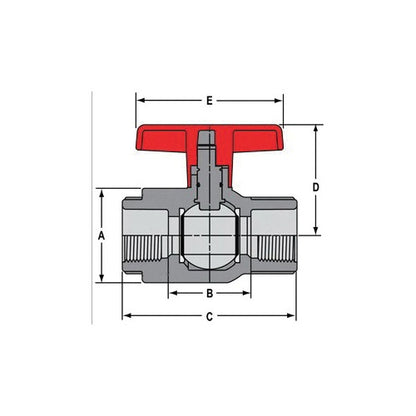

DIMENSIONS

WEIGHT

0.56 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.

SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

CPVC

Body Material

CPVC

Domestic/Import

Domestic

End Style

FNPT

Inlet to Outlet Length

4-5/16 in

Nominal Size

1 in

Pressure Rating

235 psi

Softgoods Material

EPDM

Temperature Rating

200 deg F

Top to Inlet Center

2-13/16 in

Trim Material

CPVC Stem and PTFE Seat

Type

Compact
