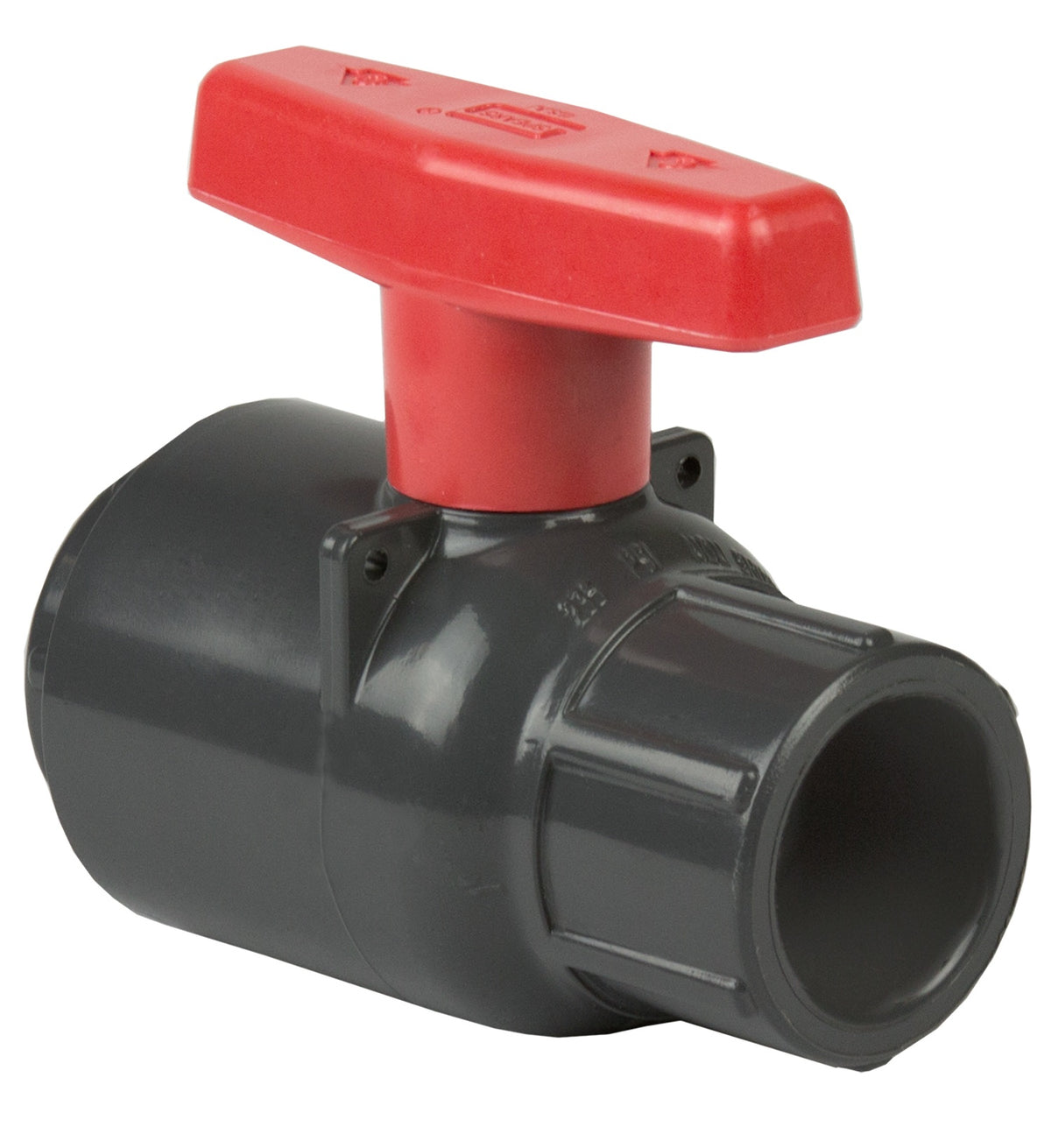

1" Compact Regular Ball Valve - PVC - Socket
1" Compact Regular Ball Valve - PVC - Socket
2122-010
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Heavy bodied PVC or CPVC construction
• High impact polypropylene handle
• Full SCH 80/XH bore
• Safe-T-Shear® stem
• EPDM O-ring
• Rated to 200psi at 73 deg F
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.5 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
This heavy bodied, quarter-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.
SPECIFICATIONS
|
Actuator Type |
T-Handle |
|---|---|
|
Ball Material |
PVC |
|
Body Material |
PVC |
|
Domestic/Import |
Domestic |
|
End Style |
Socket |
|
Inlet to Outlet Length |
4-3/8 in |
|
Nominal Size |
1 in |
|
Pressure Rating |
235 psi |
|
Softgoods Material |
EPDM |
|
Temperature Rating |
140 deg F |
|
Top to Inlet Center |
2-25/32 in |
|
Trim Material |
PVC Stem and PTFE Seat |
|
Type |
Compact |

$43.51
