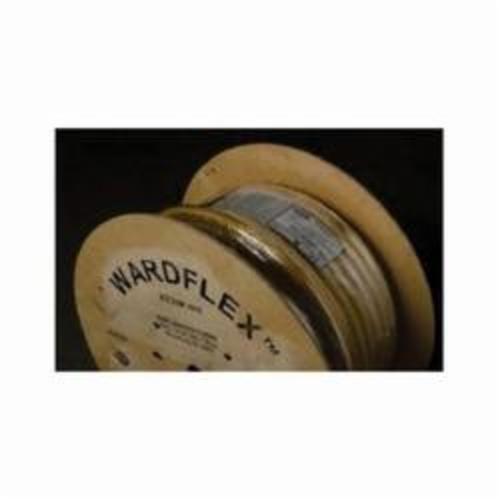

1" Corrugated Tubing - 304 Stainless Steel
1" Corrugated Tubing - 304 Stainless Steel
WF134
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Wide range of tubing sizes and coil lengths
• Double annealing for maximum flexibility
• Continuous run coils
• Helium and vacuum tested
• Quick and easy installation
• Lightweight and flexible
• Fewer fittings
• UV resistant polyethylene jacket
• Coating marked every 2 ft
• 100 percent leak tested
DIMENSIONS
DIMENSIONS
|
WEIGHT |
76 lb |
|---|
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
WARDFLEX® is a corrugated stainless steel tubing (CSST) system designed to distribute fuel gas in residential housing units and commercial structures. WARDFLEX® has been engineered, tested and certified to meet the performance requirements of American National Standard for Fuel Gas Systems Using Corrugated Stainless Steel Tubing, ANSI LC- 1. As such is acceptable for use with all recognized fuel gases, including natural gas and propane.
SPECIFICATIONS
|
Domestic/Import |
Domestic |
|---|---|
|
Material |
304 Stainless Steel |
|
Nominal Size |
1 in |
|
Outside Diameter |
1.213 in |
|
Specifications |
ANSI LC1, ASTM A240/E84, CSA 112940, IAPMO 3353, ICC ESR-1879, UL R18357 |
|
Temperature Rating |
-40 to 165 deg F |
|
Wall Thickness |
0.01 in |
|
Working Pressure |
25 psi |

$10.03
