SHARKBITE

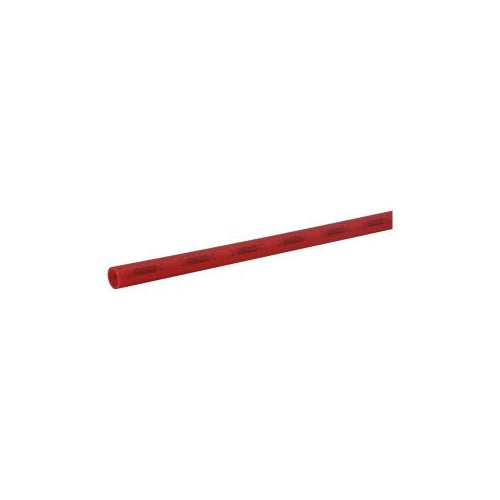

1" Tubing - PEX - CTS

1" Tubing - PEX - CTS

U880R20

$21.83
$21.83 $43.84
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Manufactured without an oxygen barrier for potable water systems
• The tubing is printed with a SharkBite® imprint pattern that provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® push-fit fitting
• This feature only works if the tubing is cut between the SharkBite® imprint pattern
• Strong, flexible, resilient tubing that provides superior temperature performance
• Flexibility: reduces the number of fittings needed to complete jobs, saving on overall cost and reducing leak points
• Chlorine and UV resistance: Highest-rated chlorine resistance, one month UV resistance
• Freeze resistance: PEX pipe is freeze-resistant and can expand slightly if frozen, PEX will contract back to its original form when thawed, PEX is not freeze-proof, PEX should be insulated to prevent freezing
• Insertion depth markings: Pre-printed insertion depth markings for SharkBite® Universal Push-to-Connect fittings
• Lead free

DIMENSIONS

WEIGHT

3.48 lb

WARRANTY

25 Years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Warranty Information
Product Brochure

PRODUCT OVERVIEW

SharkBite PEX-B is a cross-linked polyethylene tubing designed for use in residential and commercial plumbing applications. PEX pipe is flexible and easy to work with, which reduces the number of fittings needed to complete a job; reducing cost and leak points. PEX is also extremely durable and corrosion/freeze resistant. SharkBite PEX is compatible with brass or plastic barb fittings using copper crimp ring or stainless steel clamp connection methods or push-to-connect fittings.

SPECIFICATIONS

Domestic/Import

Domestic

End Style

CTS

Inside Diameter

0.862 in

Material

PEX

Nominal Size

1 in

Outside Diameter

1-1/8 in

Temperature Rating

33 to 200 deg F

Wall Thickness

1/8 in

Working Pressure

160 psi
