ZURN WILKINS

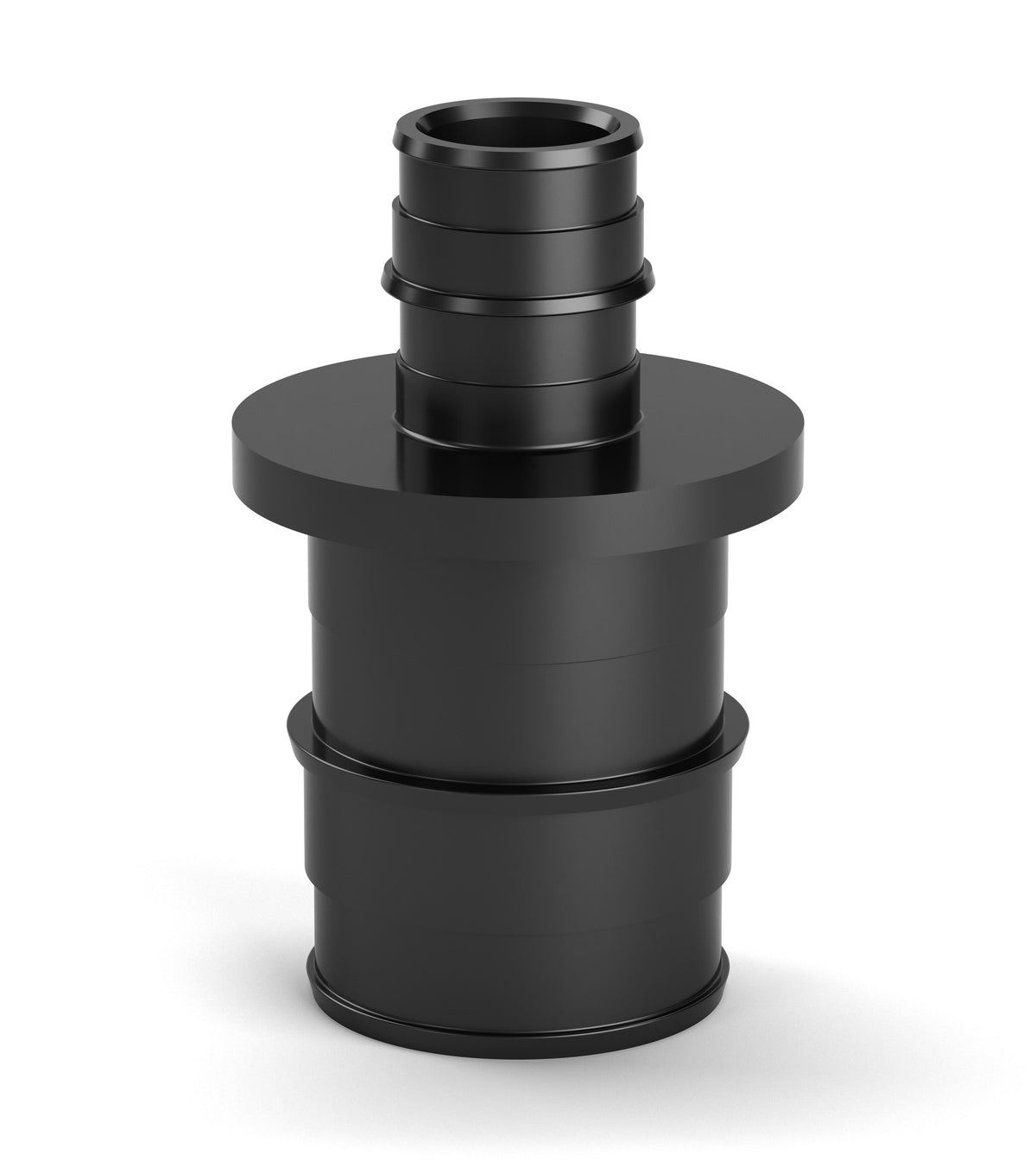

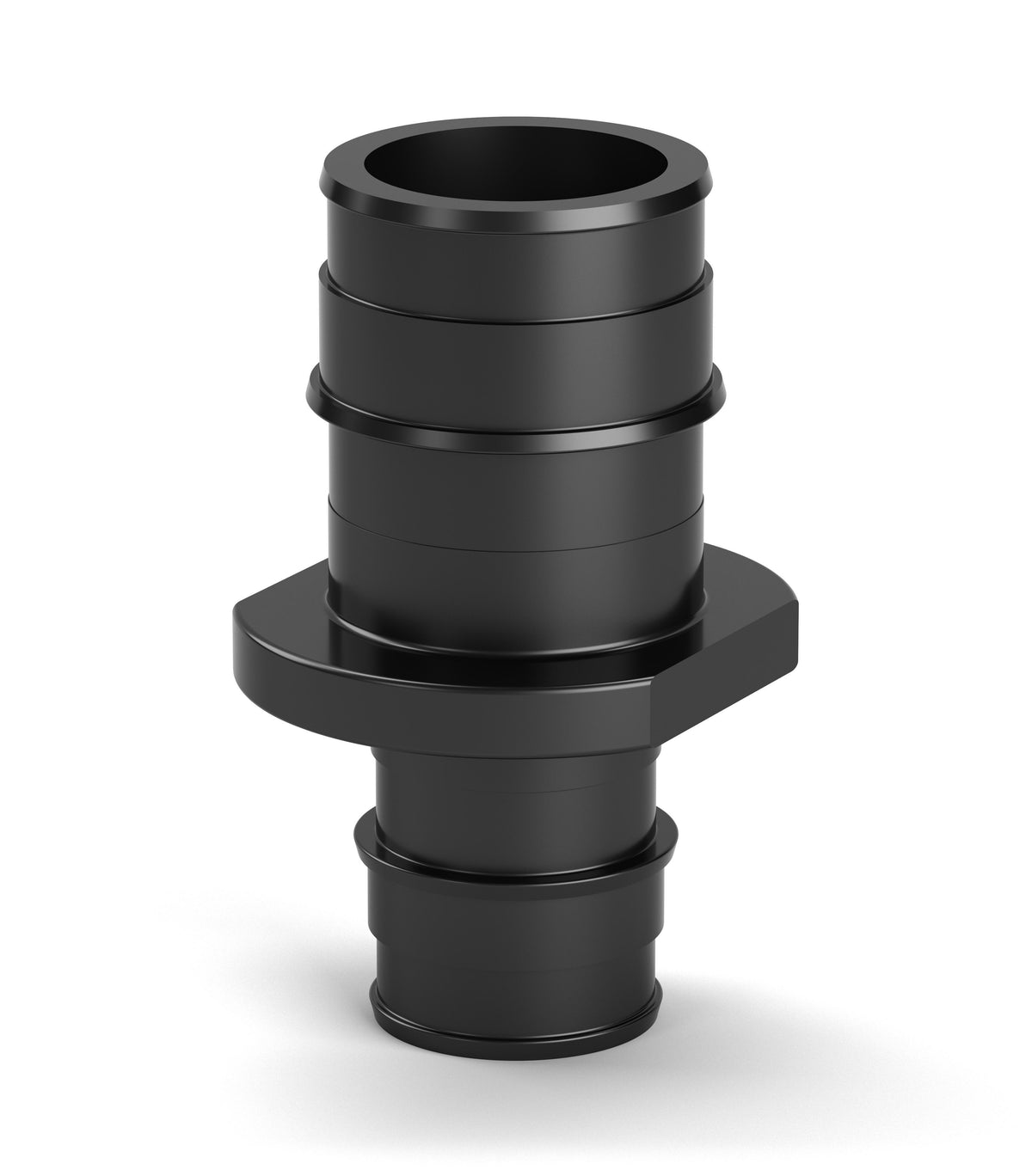

1 x 3/4" Reducer Coupling - Cr Polymer - F1960 Expansion PEX

1 x 3/4" Reducer Coupling - Cr Polymer - F1960 Expansion PEX

QEPC54X

$6.00
$6.00 $7.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 1 in EX PEX x 3/4 in EX PEX Polymer Expansion Coupling provides a durable connection without the need for glues, solvents, gauges, or torches for non-barrier PEX tubing
• Reinforcing Ring, QER_X is sold separately and necessary to complete the joining process
• Expansion tool required for installation
• Complete line of complementary products

DIMENSIONS

LENGTH

2.34 in

WEIGHT

0.04 lb

WARRANTY

25 Years Limited

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

The QEPC_X is used to connect Zurn® Non-Barrier PEX® tubing together in potable water applications. Molded from Polyphenylsulfone (PPSU), these fittings, as a system with Zurn® PEX® tube and Zurn® PEX® reinforcing rings are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 200 deg F. These fittings are 3rd party certified as complying with the following standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, NSF/ANSI Standard 372 (Low Lead), ASTM F1960, CSA B137.5.

SPECIFICATIONS

Dimensions

1-1/2 in OD

End Style

F1960 Expansion PEX

Material

CR Polymer

Method of Manufacture

Molded

Nominal Size

1 x 3/4 in

Pressure Rating

160 psi

Temperature Rating

73 deg F
