ZOELLER

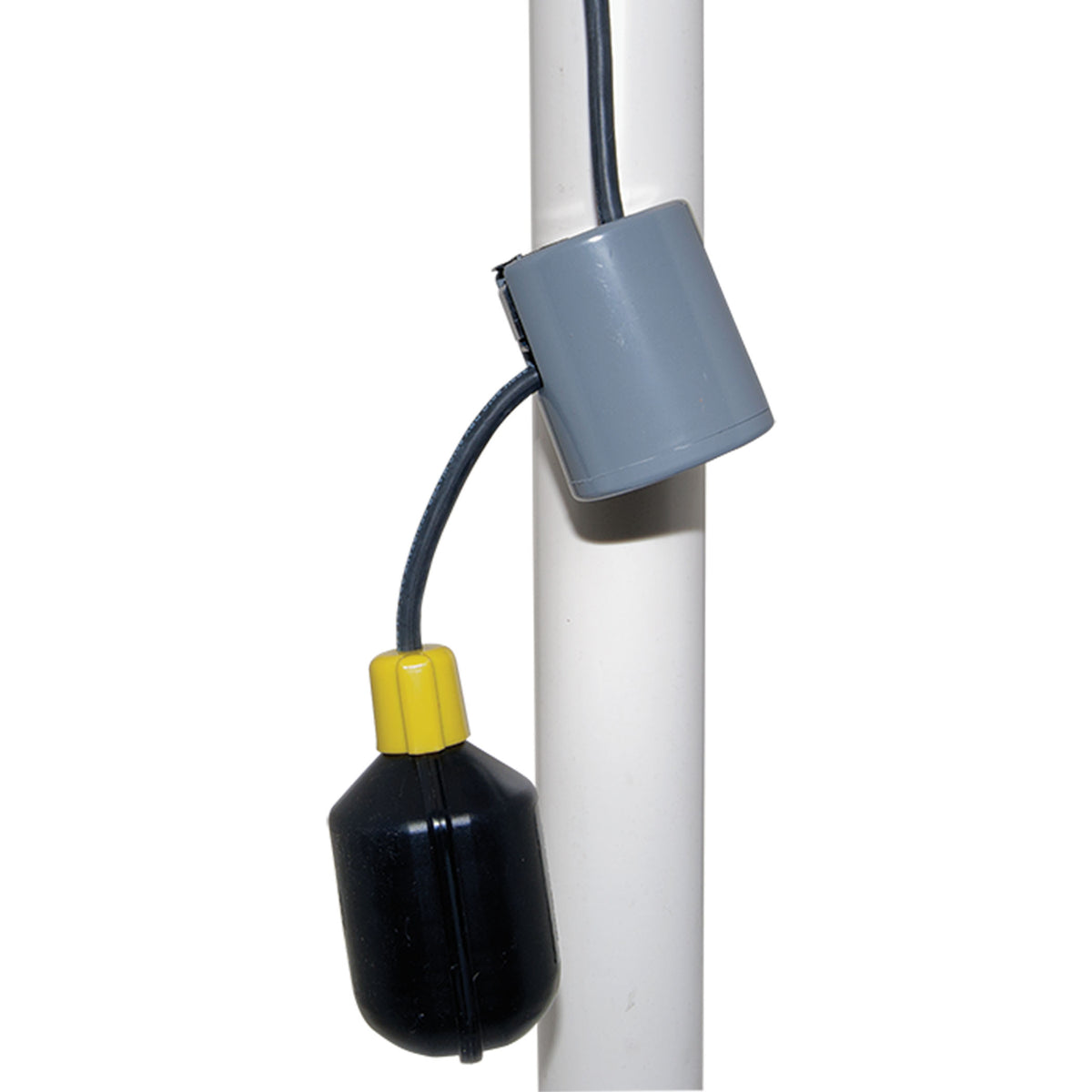

10-1883 Variable Level Pump Switch - PVC/Polypropylene

10-1883 Variable Level Pump Switch - PVC/Polypropylene

10-1883.

$134.39
$134.39 $0.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing
• 18/2 Type SJOW CPE Cord-Standard
• Approximately 1/2 in liquid level differential in switching action
• Normally open when hanging vertically above liquid level
• Switch closes when it reaches a few degrees above the horizontal position
• Standard mechanical variable level control switches are rated for 115/230V, 5 A

DIMENSIONS

WEIGHT

6 lb

WARRANTY

2 Years Limited

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

The narrow angle control float switch allows you to adjust the on/off points in the basin optimizing pump run time. The floats signal to the control panel to activate the nonautomatic pump based on the liquid level for a variety of pumping applications. The float switch cord is 50'.

SPECIFICATIONS

Body Material

PVC/Polypropylene

Switch Type

Normally Open

Type

Variable Level

Voltage Rating

115/230 V
