10 ft Rated Head - Guide Rail System - Fiberglass
10 ft Rated Head - Guide Rail System - Fiberglass
2472LSG202-24
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Factory assembled 2hp grinder pump 24 in diameter system
• Pre-mounted floats for pump control and alarm
• All stainless steel supports and brackets pre-mounted
• Stainless steel chain for pump lift-out
• 24 in discharge depth
DIMENSIONS
DIMENSIONS
|
WEIGHT |
237 lb |
|---|
WARRANTY
WARRANTY
3 Years
PRODUCT OVERVIEW

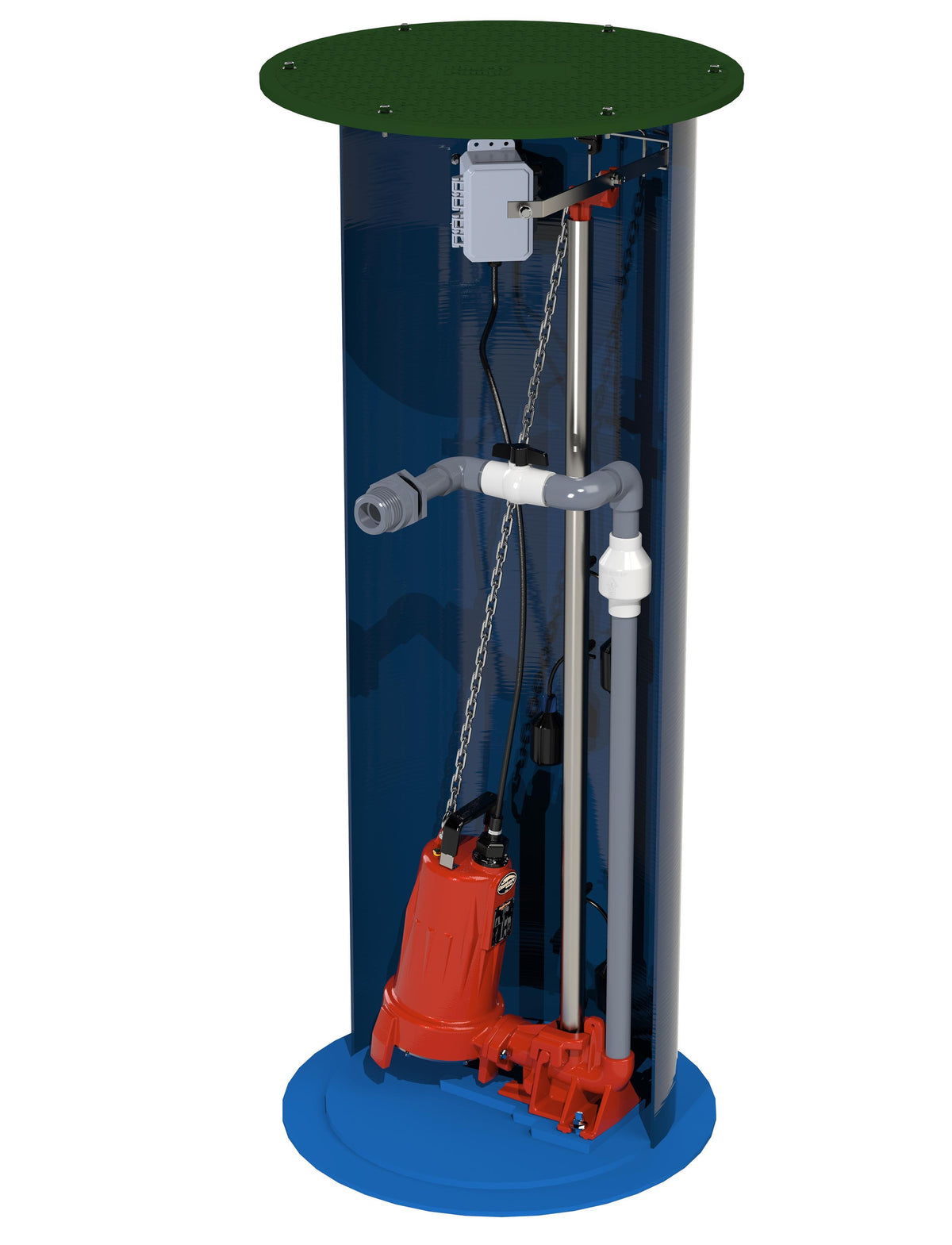

For residential and commercial applications, the 2472LSG is a complete factory assembled Simplex Grinder Package featuring the LSG200 series 2 hp Omnivore® grinder pump. All internal brackets, floats, guide-rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site.
SPECIFICATIONS
|
Amperage Rating |
15 A Full Load/53 A Locked Rotor |
|---|---|
|
Basin Capacity |
141 gal |
|
Bearing Type |
Upper Radial/Lower Thrust |
|
Cord Type |
25 ft |
|
Enclosure Type |
NEMA 4X |
|
Frequency Rating |
60 Hz |
|
Horsepower |
2 hp |
|
Impeller Type |
300 Stainless Steel |
|
Inlet Size |
4 in Hub |
|
Material |
Fiberglass |
|
Maximum Flow Rate |
50 gpm |
|
Maximum Head |
110 ft |
|
Motor Speed |
3450 rpm |
|
Mounting Type |
Guide Rail System |
|
Outlet Size |
1-1/4 in NPT |

$6,022.50
