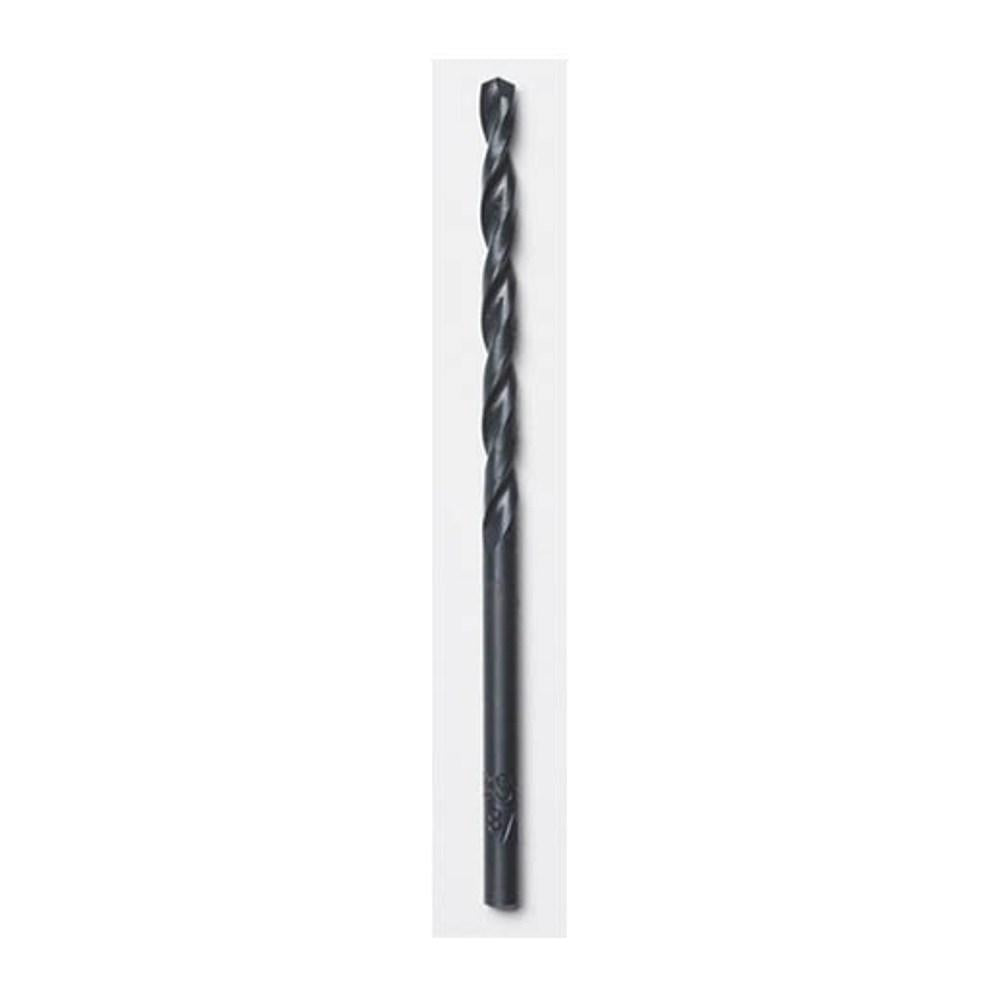

12-Piece Jobber Length Twist Drill Bit - HSS - Oxide Treated
12-Piece Jobber Length Twist Drill Bit - HSS - Oxide Treated
48-89-2826
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
LENGTH |
3.13 in |
|---|---|
|
WEIGHT |
0.01 lb |
PRODUCT OVERVIEW
Milwaukee® Thunderbolt® black oxide jobber length drill bits are designed for extreme durability and long life. The Thunderbolt® web features a thicker core than a standard drill bit, which provides ultimate strength and protects against side-load breakage. A specially designed parabolic flute form clears chips and debris fast to keep the bit cool. A precision start, 135 split point tip starts on contact to keep the bit from walking for fast accurate holes. Excellent for drilling on curved surfaces, requires less effort to drill and is highly recommended for use with portable drills. The 3-flat secure-grip shank won't slip in the drill chuck. Reduced shank diameter for use in 3/8 in. chucks.
SPECIFICATIONS
|
Applicable Materials |
Cast Iron, Steel and Steel Forgings |
|---|---|
|
Cutting Depth |
2 in |
|
Cutting Edge Material |
HSS |
|
Drill Diameter Measurement System |
Imperial |
|
Drill Size - Decimal Inch |
0.1562 in |
|
Drill Size - Fraction |
5/32 in |
|
Flute Length |
2 in |
|
Flute Type |
Parabolic |
|
Material |
HSS |
|
Overall Length |
3-1/8 in |
|
Point Angle |
118 deg |
|
Point Type |
Split |
|
Shank Size |
5/32 in |
|
Shank Type |
Round |

$1.18
