A.Y. MCDONALD MANUFACTURING

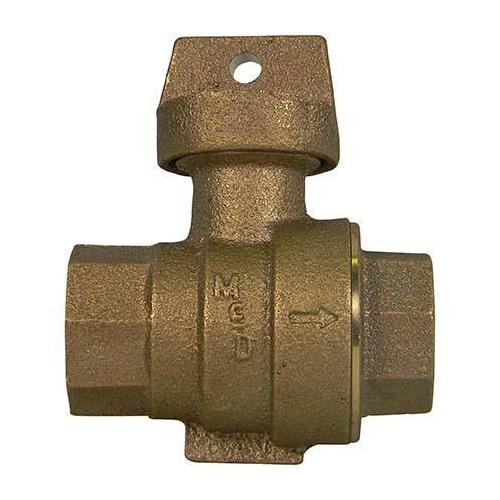

2" Ball Curb Stop - Brass - FNPT

2" Ball Curb Stop - Brass - FNPT

AY760012



Regular price $583.22
Sale price $583.22 Regular price $696.13
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


A.Y. McDonald® stop and drain ball valves maintain their low turning torques and bubble-tight 150 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. Mc Donald stop and drain ball curb stops offer positive shut-off from inlet direction only, and are available with a wide variety of end connections or Minneapolis curb box threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.


SPECIFICATIONS

Ball Material

Brass

Body Material

Brass

End Style

FNPT

Inlet to Outlet Length

5.29 in

Media

Water

Nominal Size

2 in

Pressure Rating

150 psi

Series

76001

Softgoods Material

EPDM

Top to Inlet Center

3.71 in

Trim Material

EPDM Port Seal
