WEBSTONE

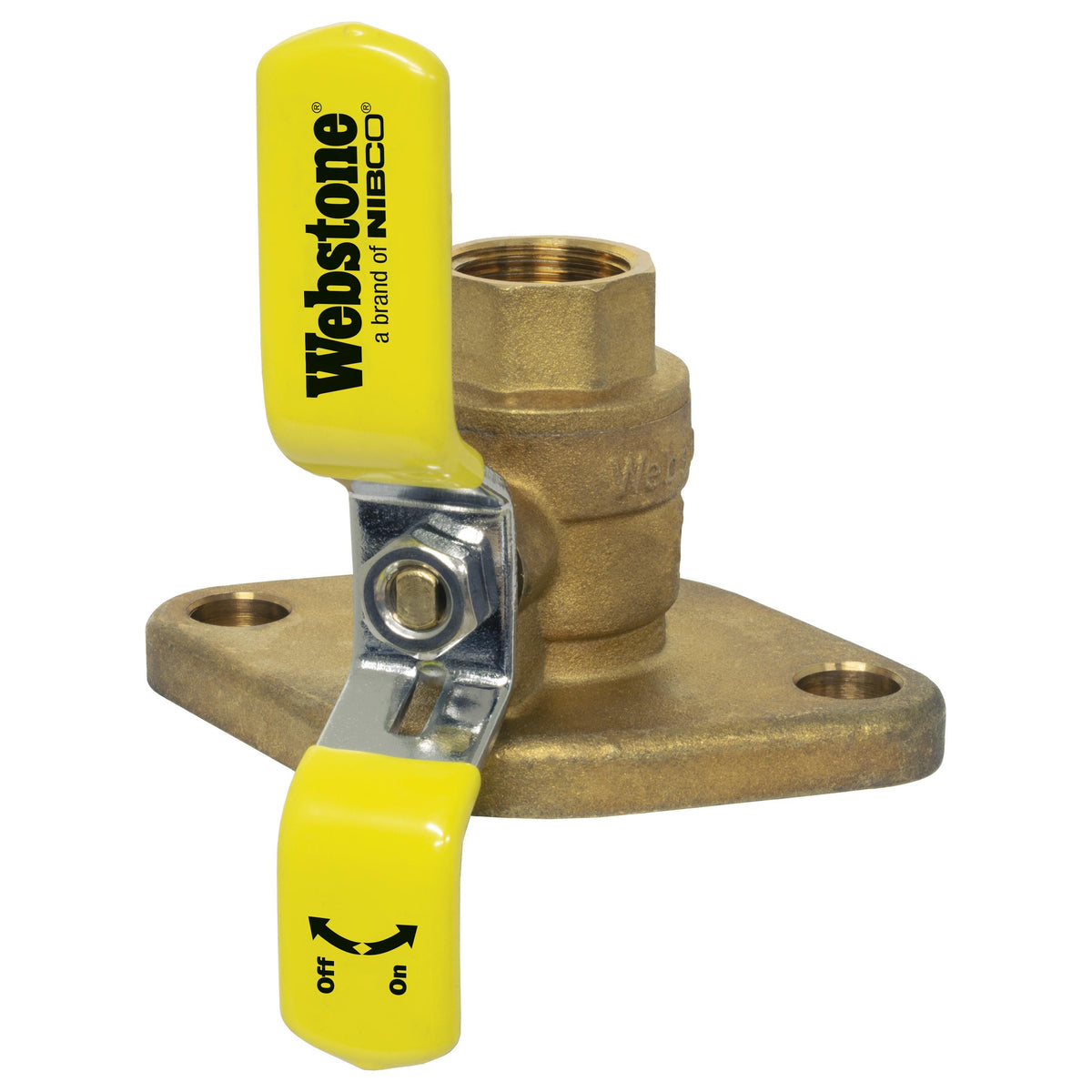

2" The Isolator H-X040 Ball Valve - Forged Brass

2" The Isolator H-X040 Ball Valve - Forged Brass

H-40407HV


Inlet to Outlet Length

Regular price $131.23
Sale price $131.23 Regular price $209.10
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Easily Isolates the Pump for Replacement
• Prevents Electrolysis and Eliminates Galvanic Corrosion
• Flange Features a Conical Inlet to Minimize Turbulence
• Fits Virtually Any Standard Circulator Pump
• Saves 18 min
• Replaces 3 Components
• This valve is actuated by a blowout proof stem

DIMENSIONS

WEIGHT

3.69 lb

WARRANTY

Limited Lifetime

PRODUCT OVERVIEW


The Isolator is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.


SPECIFICATIONS

Actuator Type

Lever Handle

Ball Material

Polished Chrome Brass

Body Material

Forged Brass

Domestic/Import

Import

End Style

IPS x Flange

Inlet to Outlet Length

4-7/16 in

Media

Water/Glycol Mixture

Nominal Size

2 in

Port Type

Full

Pressure Rating

600 psi

Series

4040

Softgoods Material

PTFE

Temperature Rating

100 deg F

Top to Inlet Center

3-3/4 in
