JOMAR VALVE

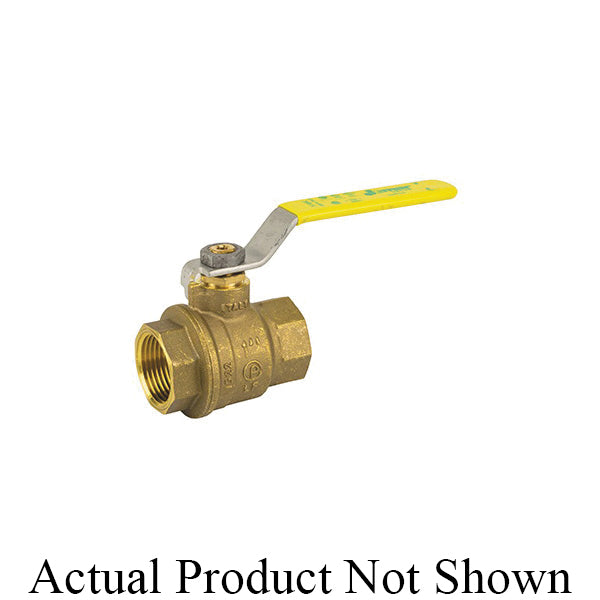

2-Piece Ball Valve with Handle - Brass Body

2-Piece Ball Valve with Handle - Brass Body

100-408G

$140.41
$140.41 $219.74
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compact design
• Triple sealing stem with (2) FKM O-Rings and PTFE seal
• Blow-out proof stem
• 100% leak tested
• Leak-proof stem lifetime warranty
• Wetted surface contains less than 0.25 % lead content
• 255.2 in Cv flow
• CW510L Lead free brass end connection/ball/stem, steel - Geomet® plated handle
• 150 psi working steam pressure
• Hostaflon® TFM 1600 packing and FKM stem O-ring

DIMENSIONS

WEIGHT

58 lb

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material

TEA Coated Brass

Body Material

Brass

End Style

Thread

Inlet to Outlet Length

4.29 in

Nominal Size

2 in

Orifice Size

1.99 in

Port Type

Full

Pressure Rating

500 psi WOG

Softgoods Material

Hostaflon® TFM/FKM

Top to Inlet Center

3.4 in

Trim Material

Brass Stem and Hostaflon® TFM 1600 Seat

Type

2-Piece
