JOMAR VALVE

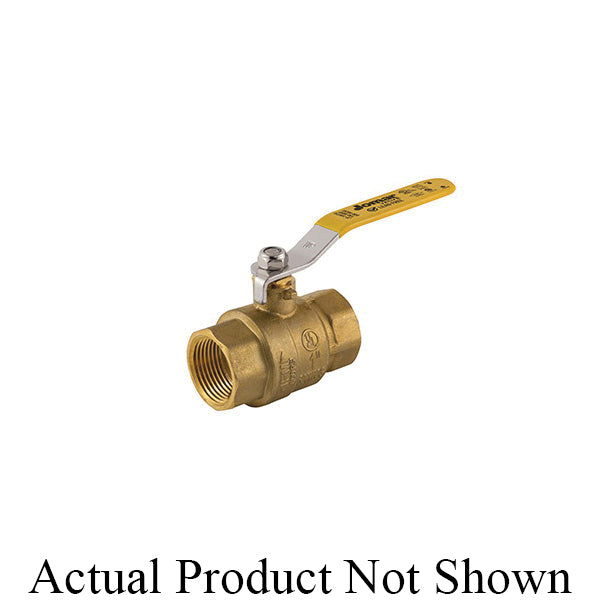

2-Piece Ball Valve with Handle - Brass - Thread

2-Piece Ball Valve with Handle - Brass - Thread

100-108SSG

$155.68
$155.68 $199.50
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested
• Wetted surfaces contains less than 0.25 % lead content
• C46400 Lead free brass end connection, steel chrome plated handle
• Rubber lock washer
• 150 psi working steam pressure
• PTFE packing and Buna-N stem O-ring

DIMENSIONS

WEIGHT

44 lb

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material

304 Stainless Steel

Body Material

Brass

End Style

Thread

Inlet to Outlet Length

4.29 in

Nominal Size

2 in

Orifice Size

1.97 in

Port Type

Full

Pressure Rating

600 psi WOG

Softgoods Material

PTFE/Buna-N

Top to Inlet Center

3.03 in

Trim Material

304 Stainless Steel Stem and PTFE Seat

Type

2-Piece
