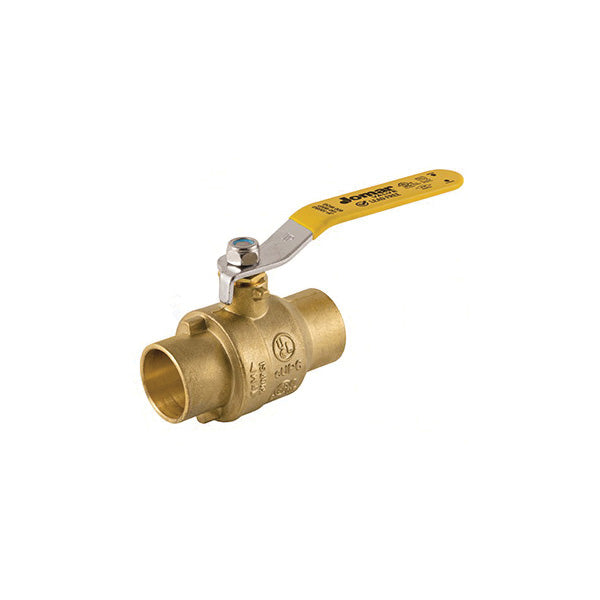

2-Piece Ball Valve with Handle - Full Port

Name: 2-Piece Ball Valve with Handle - Full Port
Brand: JOMAR VALVE
SKU: 100-118SSG
Price: 140.0 USD
Availability: InStock

100-118SSG

$140.00

$140.00 ~~$201.84~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested
• Wetted surfaces contains less than 0.25 % lead content
• C46400 Lead free brass end connection, steel chrome plated handle
• Rubber lock washer
• 150 psi working steam pressure
• PTFE packing and Buna-N stem O-ring

DIMENSIONS

WEIGHT	47 lb

DOCUMENTS & RESOURCES

Specification Sheet

Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material	304 Stainless Steel
Body Material	Brass
End Style	Solder
Inlet to Outlet Length	5.34 in
Nominal Size	2 in
Orifice Size	1.97 in
Port Type	Full
Pressure Rating	600 psi WOG
Softgoods Material	PTFE/Buna-N
Top to Inlet Center	3.11 in
Trim Material	304 Stainless Steel Stem and PTFE Seat
Type	2-Piece
