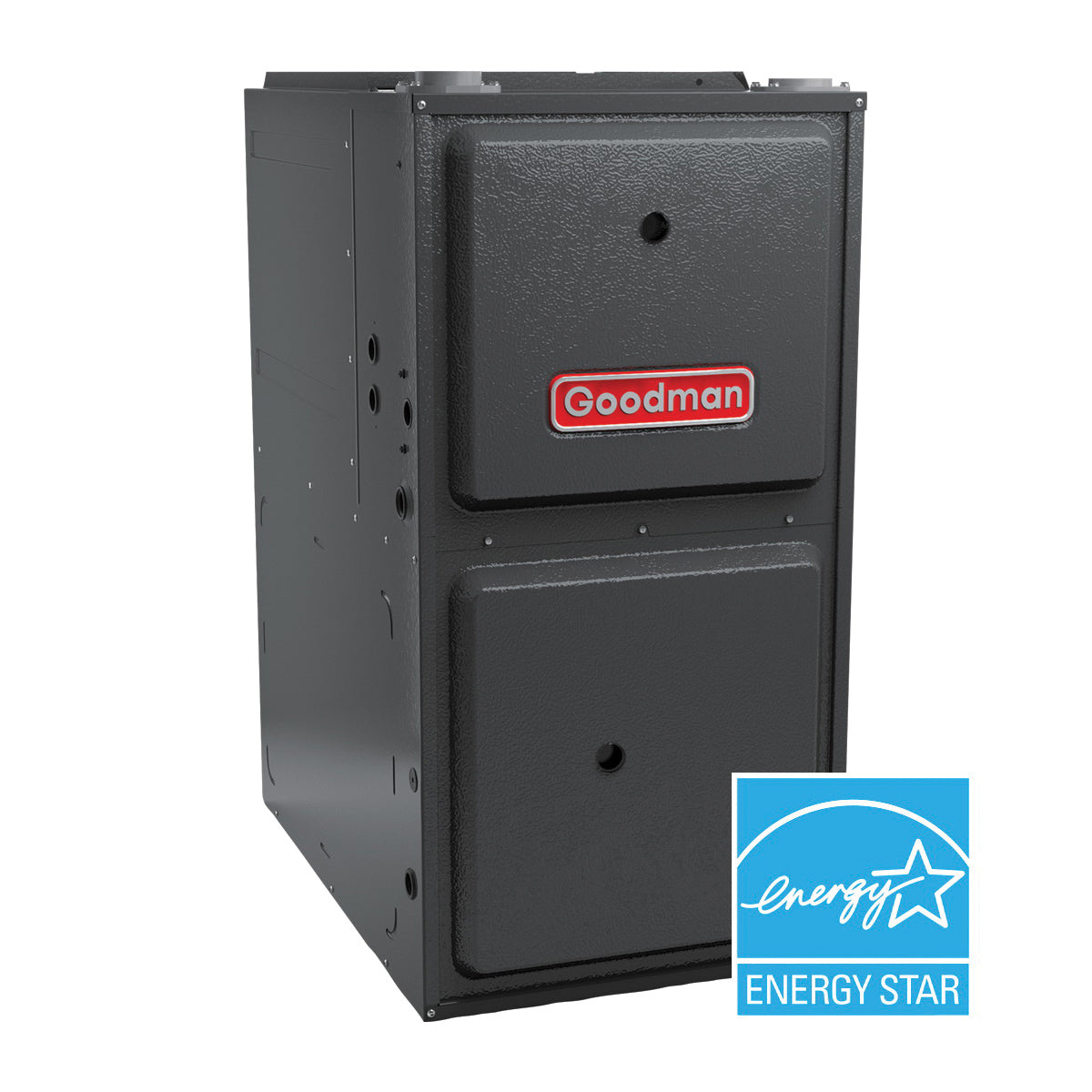

2-Stage Gas Furnace - 120000 BTU/Hr Input - 2000 CFM
2-Stage Gas Furnace - 120000 BTU/Hr Input - 2000 CFM
GMVC961205DN
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Aluminized steel tubular heat exchanger
• Efficient, quiet variable-speed circulator motor
• Durable 110 v silicon nitride igniter
• ComfortNet™ communications system compatible
• Multiple continuous fan speed options offer quiet air circulation
• Self diagnostic control board with constant memory fault code history output to a dual 7 segment display
• Quiet 2-speed induced draft blower
• Color coded low voltage terminals with provisions for electronic air cleaner and humidifier
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
• All models comply with California 40 ng/J Low NOx emissions standard
DIMENSIONS
DIMENSIONS
|
WIDTH |
24.5 in |
|---|---|
|
HEIGHT |
34.5 in |
WARRANTY
WARRANTY
10 Years Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The best gas furnace is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. All Goodman gas furnaces are loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that's designed to stay for many years. High heating bills burn us up, too. Our complete line of gas furnaces are priced to help add comfort to your budget from a local independent dealer. And that's only the beginning. We want you to smile every time you open your utility bill, so we design into our units proven energy efficient technology.
SPECIFICATIONS
|
AFUE Rating |
96% |
|---|---|
|
Connection Size |
1/2 in FNPT |
|
Dimensions |
24-1/2 in W x 23 in D x 34-1/2 in H |
|
Flow Rate |
2000 cfm |
|
Furnace Position |
Upflow/Horizontal |
|
Fuse Size |
20 A |
|
Gas Type |
Natural Gas |
|
Ignition Type |
Silicon Nitride |
|
Input Capacity |
120000 Btu/hr |
|
Low NOX |
Yes |
|
Material |
Heavy Gauge Steel |
|
Motor HP |
1 hp |
|
Motor RPM |
1075 rpm |
|
Motor Type |
ECM Variable Speed Blower |
|
Output Capacity |
115200 Btu/hr |

$4,541.00
