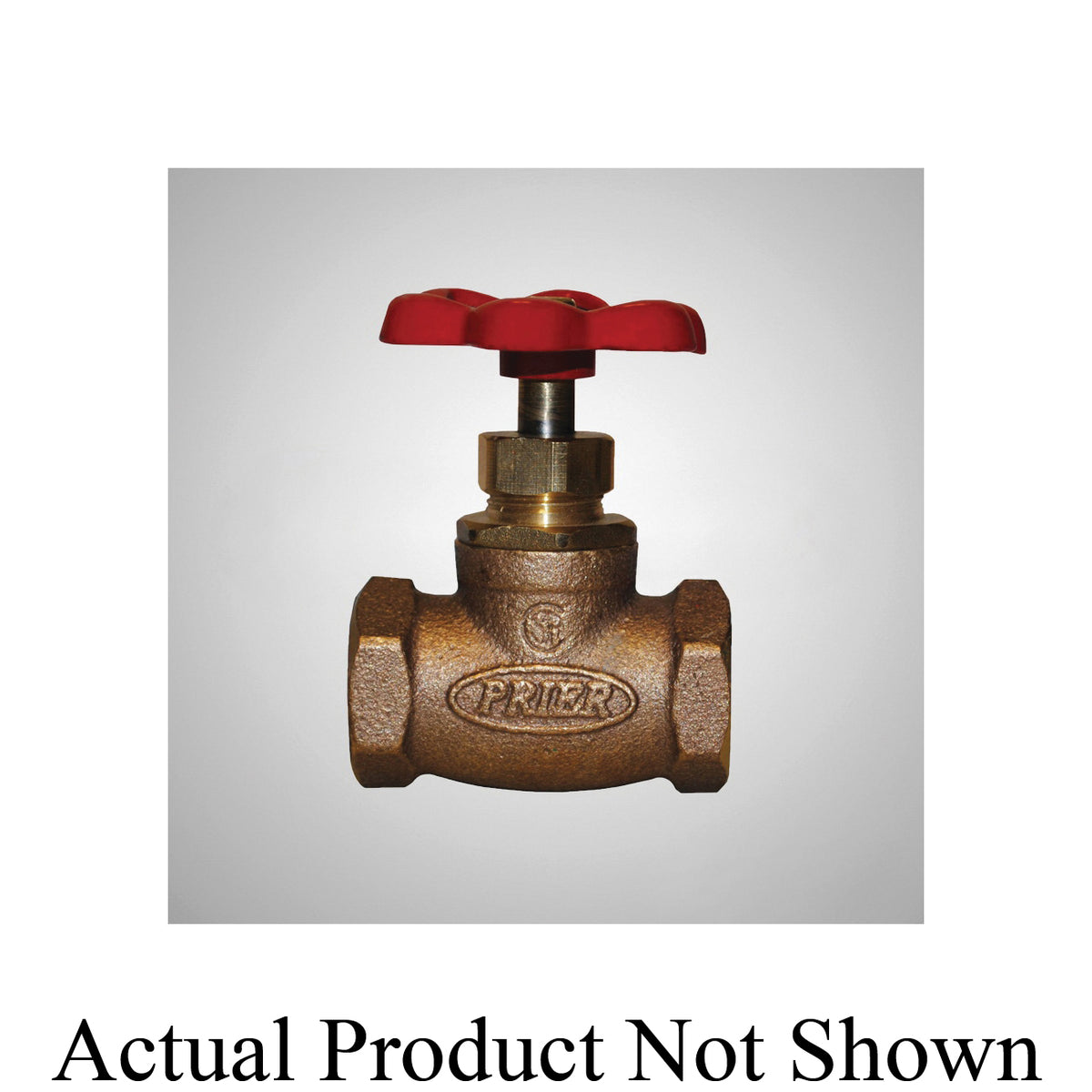

22 Series - 1/2" Heavy Pattern Mansfield Style Globe Valve
22 Series - 1/2" Heavy Pattern Mansfield Style Globe Valve
22.40-G
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Heavy pattern casted red brass construction
• Large unobstructed waterways for greater flow rate
• Cast metal handle assembly with brass mounting screw
• Packing nut design for years of reliable life
• AFG PTFE with graphite packing
• Solid brass fast-travel stem with ACME thread
• Each valve individually air-tested
DIMENSIONS
DIMENSIONS
|
HEIGHT |
3 in |
|---|---|
|
WEIGHT |
29 lb |
PRODUCT OVERVIEW
The 20/22 Series Stop Valves were added to Prier®'s offering with our 2007 purchase of Mansfield's Brass Division. The 20/22 Series Stop Valves feature a heavy brass body, metal operating handle and packing nut design. These valves are designed for precise flow control. The 20/22 Series Stop Valves feature multiple inlets and waste and drain options, a solution for any application. Each 20/22 Series Stop Valve is air tested to provide years of reliable service.
SPECIFICATIONS
|
Body Material |
Cast Brass |
|---|---|
|
Dimensions |
3 in H |
|
Domestic/Import |
Domestic |
|
End Style |
FNPT |
|
Hand Wheel Diameter |
1.9 in |
|
Inlet to Outlet Length |
2.2 in |
|
Nominal Size |
1/2 in |
|
Series |
22 Series |
|
Softgoods Material |
AFG PTFE Graphite Packing |
|
Trim Material |
Solid Brass Stem |
|
Type |
Heavy Pattern Mansfield Style |
