LIBERTY PUMPS

FL200, 10 ft Rated Head, Automatic

FL200, 10 ft Rated Head, Automatic

FL202A-2



Regular price $1,496.25
Sale price $1,496.25 Regular price $1,995.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

DIMENSIONS

WIDTH

11.75 in

HEIGHT

18.25 in

WEIGHT

88 lb

PRODUCT OVERVIEW

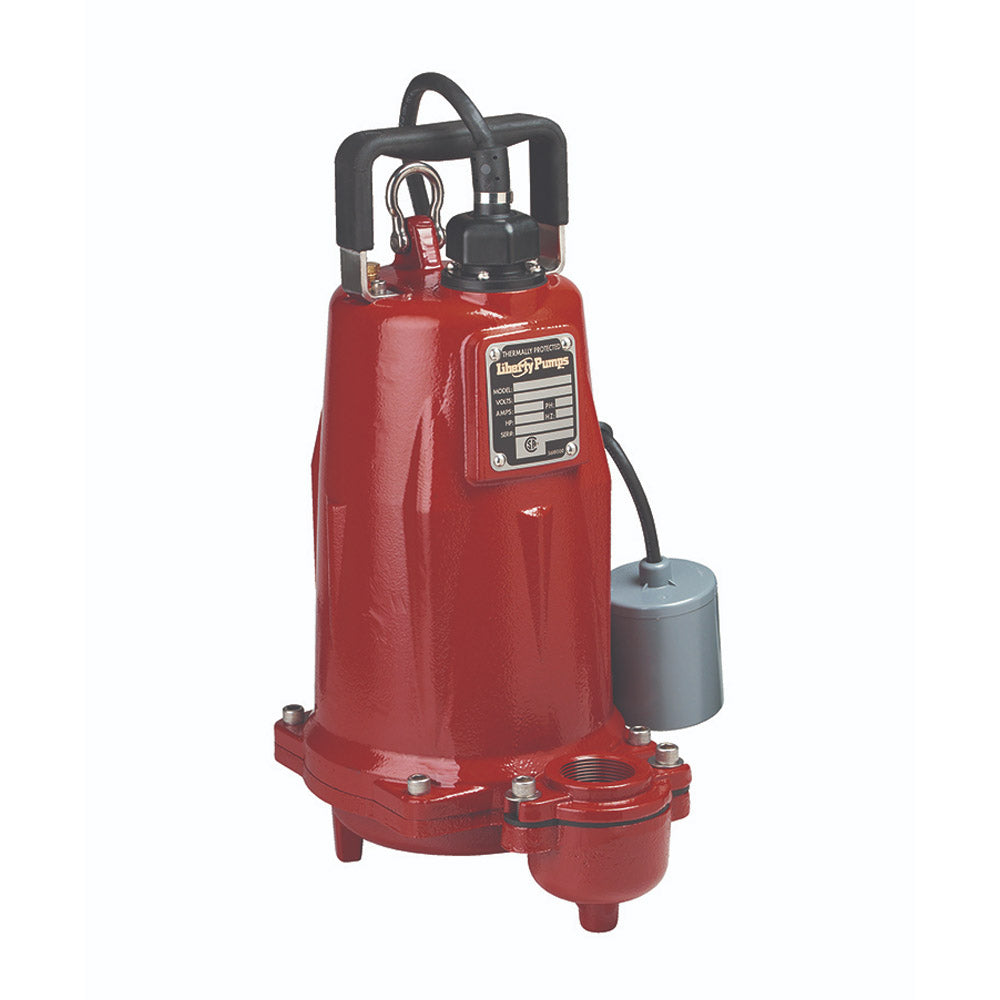

The FL200 series by Liberty is a 2 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The pump features a dual-sized threaded discharge of 1-1/2 and 2 in for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL200 series will provide years of reliable performance.


SPECIFICATIONS

Amperage Rating

15 A Full Load/53 A Locked Rotor

Automatic/Non Automatic

Automatic

Bearing Type

Ball/Race

Cord Type

SJOOW 25 ft

Dimensions

11-3/4 in W x 18-1/4 in H

Enclosure Type

NEMA 4X

Frequency Rating

60 Hz

Horsepower

2 hp

Impeller Type

Cast Iron 3-Vane Semi-Open

Material

Cast Iron

Maximum Flow Rate

102 gpm

Maximum Head

130 ft

Motor Speed

3450 rpm

Mounting Type

Flange

Outlet Size

1-1/2 in, 2 in FNPT
