JOMAR VALVE

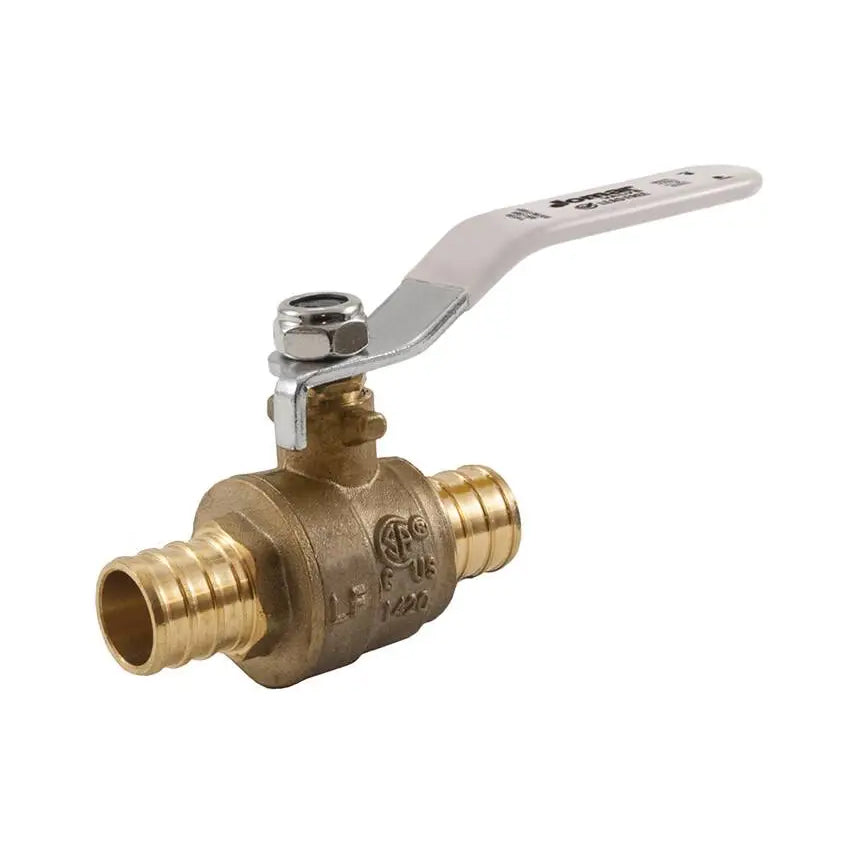

3/4" 2-Piece Ball Valve with Handle - Brass - PEX (Crimp)

3/4" 2-Piece Ball Valve with Handle - Brass - PEX (Crimp)

103-524PG

$20.15
$20.15 $25.82
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Gland follower and single O-Ring stem design
• Blow-out proof stem
• 100% leak tested
• Wetted surfaces contains less than 0.25 % lead content
• Crimp connection rated to 100 psi WOG up to 180 deg F
• C46500 chrome plated Lead free brass ball, C46500 brass body, CZ132 brass stem
• PTFE packing and EPDM O-ring

DIMENSIONS

WEIGHT

50 lb

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

SPECIFICATIONS

Ball Material

Chrome Plated Brass

Body Material

Brass

End Style

PEX (Crimp)

Inlet to Outlet Length

2.72 in

Nominal Size

3/4 in

Orifice Size

0.67 in

Port Type

Standard

Pressure Rating

400 psi WOG

Softgoods Material

PTFE/EPDM

Top to Inlet Center

1.57 in

Trim Material

Brass Stem

Type

2-Piece
