SHARKBITE

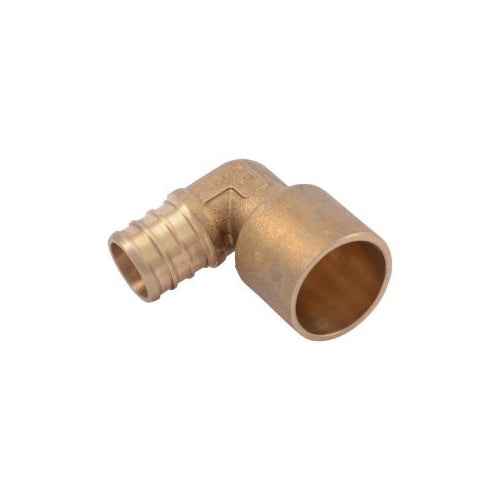

3/4" Adapter Elbow - Brass - Female C x PEX

3/4" Adapter Elbow - Brass - Female C x PEX

UC626LF

$3.47
$3.47 $7.48
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Broad line of fittings, manifolds, regulator, thermostatic and ball valves: A typical barb system offers the lowest material cost
• Clamp ring connections: The time saving clamp rings and tool offer reduced equipment cost, one tool clamps all sizes and the necessity to check each fitting ring with a go/no-go gauge is eliminated
• Crimp ring connections: Copper crimp rings and the heavy duty tool with interchangeable jaws, does not require calibration and allows each joint to be checked with a go/no-go gauge
• Dezincification-resistant (DZR) brass
• ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
• ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing

DIMENSIONS

WEIGHT

0.12 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet
Warranty Information
Product Brochure

PRODUCT OVERVIEW

The SharkBite PEX barb fitting is made of a lead-free DZR brass, and is an easy to install, low-cost solution to connect to PEX tubing. The SharkBite PEX barb fittings are compatible for potable water distribution and hydronic heating applications.

SPECIFICATIONS

Domestic/Import

Import

End Style

Female C x PEX

Fitting/Connector Type

90 deg Elbow

Material

Brass

Nominal Size

3/4 in

Temperature Rating

95 to 118 deg F
